Attenuators in Microwave Engineering
Attenuators in Microwave Engineering
Attenuators are passive microwave devices used to control power levels in a microwave system by partially absorbing the transmitted signal wave. Unlike amplifiers, attenuators do not add energy to the signal; instead, they introduce a controlled loss that reduces the signal power while maintaining the integrity of the transmitted waveform. Both fixed and variable attenuators are extensively used in microwave communication, radar, measurement, and testing systems where precise adjustment of microwave power levels is required.
Introduction to Attenuators
Purpose of Attenuators
The primary purpose of an attenuator is to reduce the power level of a microwave signal to a desired value. In many microwave systems, the transmitted signal may be stronger than required by subsequent stages, making power control essential for proper operation. Attenuators achieve this objective by partially absorbing the energy carried by the electromagnetic wave and converting a portion of it into heat. Since attenuators are passive devices, they operate without providing gain and are therefore highly reliable and stable. Their ability to provide controlled signal reduction makes them indispensable components in microwave test benches, communication links, and power-monitoring circuits.
Resistive Film Construction
Microwave attenuators are commonly constructed using resistive films deposited on dielectric materials. A widely used construction employs an aquadag-coated dielectric sheet, where the resistive coating acts as the energy-absorbing element. When microwave energy encounters the resistive film, currents are induced within the coating, causing a portion of the electromagnetic energy to be dissipated as heat. By carefully selecting the dimensions and resistance of the film, a desired amount of attenuation can be achieved while maintaining acceptable impedance matching characteristics.
Coaxial Attenuator
Construction

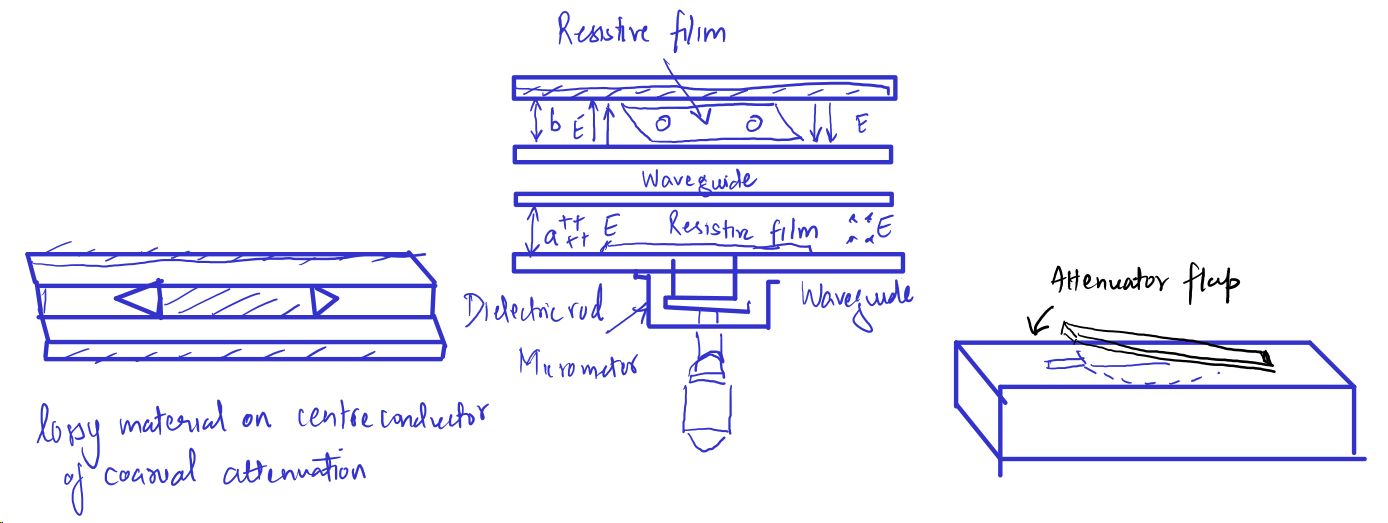

A coaxial attenuator consists of a section of coaxial transmission line in which a lossy resistive film is incorporated along the centre conductor. The centre conductor serves as the primary path for microwave signal transmission, while the resistive coating introduces controlled losses. The physical dimensions and resistive properties of the film are selected so that a specified amount of microwave power is absorbed as the signal propagates through the attenuator.
Working Principle
The operation of a coaxial attenuator is based on the absorption of microwave energy by the resistive film placed on the centre conductor. As the electromagnetic wave travels along the coaxial line, part of its energy is converted into heat within the resistive element. This reduction in transmitted power results in attenuation of the microwave signal. Since the energy loss is carefully controlled, the attenuator provides a predictable reduction in power while maintaining the characteristic impedance of the transmission line.
Waveguide Attenuator
Construction
A waveguide attenuator consists of a thin dielectric strip coated with a resistive film and positioned inside the waveguide. The strip is placed parallel to the region of maximum electric field intensity so that maximum interaction occurs between the propagating microwave field and the resistive coating. The dielectric strip provides mechanical support for the resistive film while ensuring proper placement within the waveguide structure.
Working Principle
When a microwave signal propagates through the waveguide, the electric field induces currents in the resistive coating of the attenuator vane. These induced currents encounter resistance and dissipate energy in the form of heat. As a result, a portion of the microwave power is absorbed by the resistive film, reducing the power available at the output. The attenuation achieved depends on the amount of interaction between the electric field and the resistive element, making the position and dimensions of the vane important design parameters.
Reflection Reduction
The dielectric strip used in a waveguide attenuator is tapered at both ends to minimize reflections caused by abrupt discontinuities. The taper length is generally chosen to be greater than half a wavelength, allowing a gradual transition between the unloaded waveguide and the attenuator section. This gradual transition improves impedance matching and significantly reduces reflected power, thereby ensuring efficient attenuation with minimal disturbance to the propagating microwave signal.
Support Structure
The resistive vane is mechanically supported by dielectric rods positioned perpendicular to the electric field. These support rods are separated by an odd multiple of a quarter wavelength so that their influence on the electromagnetic field distribution is minimized. The use of dielectric supports ensures structural stability while maintaining low interference with the microwave signal propagating through the waveguide.
Variable Attenuator
Movable Resistive Vane
A variable attenuator can be realized by moving a resistive vane within the waveguide. The vane is typically adjusted using a micrometer screw mechanism, allowing it to move from the side of the narrow wall toward the centre of the waveguide where the electric field reaches its maximum value. As the vane approaches the region of stronger electric field intensity, greater interaction occurs between the field and the resistive element, resulting in increased attenuation. This arrangement provides a convenient and precise method for continuously controlling microwave power levels.
Depth-of-Insertion Method
Another form of variable attenuator controls attenuation by changing the depth of insertion of a resistive vane through a longitudinal slot located at the centre of the broad wall of the waveguide. In this method, the vane is inserted progressively into the region of maximum electric field. Increasing the depth of insertion increases the interaction between the microwave field and the resistive element, thereby producing greater attenuation. This technique offers accurate and repeatable adjustment of attenuation over a wide range.
Performance Characteristics
Variable attenuators are designed to provide smooth and predictable control of microwave signal levels. By appropriately shaping the resistance card, a nearly linear variation of attenuation with vane position or insertion depth can be obtained. Practical microwave attenuators of this type are capable of providing attenuation values as high as 90 dB while maintaining a very low VSWR of approximately 1.05. Such characteristics ensure excellent impedance matching, low reflection, and precise attenuation control, making these devices highly suitable for laboratory measurements and microwave system testing.
Advantages of Attenuators
Controlled Power Reduction
The primary advantage of an attenuator is its ability to reduce microwave power levels in a controlled and predictable manner. By introducing a known amount of attenuation, the signal level can be adjusted to meet the requirements of different microwave components and subsystems without affecting the operating frequency of the signal.
Improved Measurement Accuracy
Attenuators are widely used in microwave measurements because they allow accurate adjustment of signal levels. During testing and calibration, excessive power may damage sensitive instruments or produce inaccurate readings. An attenuator helps establish the desired signal level, thereby improving measurement reliability and accuracy.
Good Impedance Matching
Properly designed attenuators provide excellent impedance matching between interconnected microwave components. Variable attenuators, for example, can achieve very low VSWR values, which minimize reflections and ensure efficient transmission of microwave energy through the system.
Simple and Reliable Construction
Since attenuators are passive devices and contain no active electronic components, they are simple in construction and highly reliable in operation. Their performance remains stable over long periods, making them suitable for continuous use in communication, radar, and laboratory systems.
Limitations of Attenuators
Power Dissipation
The attenuation process is achieved by absorbing a portion of the microwave energy and converting it into heat. As a result, useful signal power is lost during operation. This characteristic makes attenuators unsuitable for applications where maximum power transfer is required.
Heating Effects
Since absorbed microwave energy is dissipated as heat in the resistive element, excessive input power may cause temperature rise within the attenuator. Proper thermal design is therefore necessary, especially in high-power microwave systems.
No Signal Amplification
An attenuator can only reduce signal strength and cannot compensate for signal losses elsewhere in the system. If the signal becomes too weak after attenuation, an additional amplifier may be required to restore the desired power level.
Finite Attenuation Range
Although variable attenuators provide a wide range of attenuation values, the achievable attenuation is limited by the physical design of the resistive vane, insertion mechanism, and waveguide structure. Therefore, the attenuation range cannot be increased indefinitely.
Applications of Attenuators
Microwave Test and Measurement Systems
Attenuators are extensively used in microwave laboratories and testing facilities to adjust signal levels during experiments, calibration procedures, and performance measurements. They enable precise control of microwave power without altering the operating frequency of the signal source.
Receiver Protection
Sensitive microwave receivers can be damaged by excessive input power. Attenuators are inserted at the receiver input to reduce signal strength to a safe level, thereby protecting the receiver circuitry from overload conditions.
Communication Systems
In microwave communication links, attenuators are used to maintain proper signal levels between different stages of the system. They help prevent overdriving of components and ensure stable operation of transmitters, receivers, and intermediate microwave circuits.
Radar Systems
Radar equipment employs attenuators for power-level adjustment, calibration, and testing purposes. Variable attenuators are particularly useful when evaluating receiver sensitivity and overall radar system performance under different operating conditions.
Isolation and Signal Conditioning
Attenuators are often used to provide controlled signal reduction between interconnected microwave components. This helps improve impedance matching, reduce unwanted reflections, and condition signal levels for proper operation of the overall microwave system.
