Capacitive Window
Capacitive Window

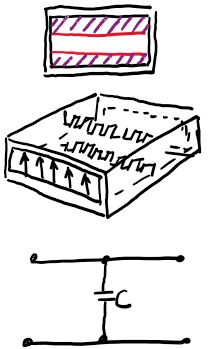

A capacitive window is formed when conducting diaphragms are inserted into the waveguide from the top and bottom walls. The conducting surfaces extend toward each other and leave an opening through which the electromagnetic wave can continue to propagate. Unlike the inductive window, where the conducting diaphragms are introduced from the side walls and produce an inductive effect, the capacitive window primarily modifies the electric field distribution between the top and bottom walls. The conducting surfaces effectively bring two regions of opposite electric potential closer together. As a result, the electric field becomes concentrated in the region around the aperture, and the structure produces an equivalent capacitive effect. In the equivalent microwave circuit, the capacitive window can therefore be represented as a shunt capacitive susceptance at the point where the diaphragm is inserted.
Why the Capacitive Window Behaves Like a Capacitor
The capacitive behavior can be understood by examining the potential difference and electric field between the conducting surfaces. Before the diaphragm is introduced, the electric field exists across the normal distance between the top and bottom walls of the waveguide. The conducting walls establish the boundary conditions for the electric field, and a corresponding potential difference exists between regions of the waveguide. When conducting diaphragms are inserted from the top and bottom walls, the opposing conducting surfaces become much closer to each other. The potential difference that previously existed across the larger separation is now concentrated across the smaller separation between the two diaphragm surfaces. This produces a stronger electric field in the region between the surfaces and increases the ability of the structure to store electric energy.
The electrical energy stored in a capacitor can be represented by:
$ W_e=\frac{1}{2}CV^2 $
where \(W_e\) is the stored electric energy, \(C\) is the equivalent capacitance, and \(V\) is the potential difference between the conducting surfaces. The conducting diaphragms of a capacitive window produce an effect similar to the plates of a capacitor. The electric field becomes concentrated between the closely spaced conducting surfaces, resulting in increased electric energy storage. Because the structure stores electromagnetic energy predominantly in its electric field, it behaves as an equivalent capacitance when represented by a microwave equivalent circuit.
The capacitive effect is therefore produced by the geometry of the conducting diaphragm rather than by physically placing a conventional capacitor inside the waveguide. At microwave frequencies, the dimensions of the structure and the wavelength are comparable, so the fields must be treated as distributed electromagnetic quantities. Nevertheless, the equivalent capacitance provides a convenient circuit representation of the discontinuity. The physical window changes the electric field distribution, while the equivalent circuit describes the resulting electrical behavior as a capacitance connected in shunt across the waveguide.
Equivalent Capacitance and Capacitive Susceptance
The capacitive window is represented electrically as a shunt capacitive element because the conducting diaphragms produce an increased electric field interaction between the top and bottom portions of the waveguide. For an ideal capacitor, the impedance is given by:
$ Z_C=\frac{1}{j\omega C} $
The corresponding admittance is:
$ Y_C=j\omega C $
Therefore, the capacitive susceptance is:
$ B_C=\omega C $
The positive sign indicates capacitive susceptance under the conventional admittance sign convention. In an actual waveguide, the equivalent capacitance \(C\) is determined by the physical dimensions of the window, the spacing between the conducting diaphragms, the waveguide dimensions, the operating frequency, and the electromagnetic field distribution. The equivalent circuit therefore provides a simplified representation of the distributed electromagnetic behavior of the physical window.
In waveguide impedance matching, the capacitive window is treated as a shunt reactive element because its susceptance is added to the admittance of the waveguide at the location of the discontinuity. If the waveguide contains an unwanted inductive susceptance, a properly designed capacitive window can provide an opposing reactive contribution and move the total admittance toward the required matched value. The effectiveness of the matching structure depends on the magnitude of the susceptance introduced by the window. For this reason, the physical dimensions of the diaphragms must be selected carefully according to the required electrical response.
Effect of Window Insertion Depth
The normalized capacitive susceptance produced by the window depends strongly on the insertion depth of the conducting diaphragms. When the diaphragms extend only a small distance into the waveguide, the conducting surfaces are relatively far apart and their effect on the electric field distribution is comparatively small. As the diaphragms are inserted more deeply from the top and bottom walls, the remaining separation between their inner surfaces becomes smaller. The electric field is then concentrated more strongly in the region between these surfaces, increasing the electric energy stored around the discontinuity. The equivalent capacitance consequently increases, and the magnitude of the capacitive susceptance becomes greater.
If the insertion depth is represented by \(d\), the normalized susceptance can generally be expressed as a function of the insertion depth:
$ b=f(d) $
The exact relationship depends on the waveguide dimensions, the operating frequency, the propagation mode, and the geometry of the conducting diaphragms. In general, however, the magnitude of the capacitive susceptance increases as the insertion depth increases. This provides a convenient method for controlling the reactive effect of the window. A shallow insertion produces a relatively small capacitive correction, whereas a deeper insertion produces a stronger capacitive effect. During waveguide matching, the insertion depth can therefore be selected so that the window supplies the required amount of capacitive susceptance.
The increase in capacitive effect with insertion depth can also be understood from the approximate behavior of a parallel plate capacitor. For an ideal parallel plate structure, capacitance is approximately related to the plate area and separation by:
$ C\approx\frac{\varepsilon A}{d} $
where \(A\) is the effective area of the conducting surfaces and \(d\) is their separation. Although an actual waveguide window does not behave exactly like an ideal parallel plate capacitor, the relationship illustrates the important physical principle. Bringing the conducting surfaces closer increases the electric field concentration and increases the ability of the structure to store electric energy. The actual microwave capacitance is determined by the complete field distribution around the aperture rather than by the simple parallel plate expression alone.
Voltage Breakdown in a Capacitive Window
One of the main limitations of capacitive windows is the high electric field that can develop between the closely spaced conducting surfaces. As the diaphragms extend farther into the waveguide, the separation between the opposing conducting surfaces becomes smaller and the electric field can become strongly concentrated in the remaining opening. For a given potential difference, reducing the separation increases the electric field intensity. In a simplified form, the electric field between two conducting surfaces can be related to the voltage and separation by:
$ E\approx\frac{V}{d} $
where \(E\) is the electric field strength, \(V\) is the potential difference, and \(d\) is the effective separation. This relationship shows why a smaller separation can produce a much larger electric field for the same applied voltage. In a high power microwave waveguide, the electric field can therefore become sufficiently strong to cause electrical breakdown in the region around the aperture.
Voltage breakdown occurs when the electric field becomes strong enough to ionize the surrounding medium or otherwise produce an unwanted electrical discharge between regions of different potential. Once breakdown begins, the waveguide can no longer operate safely at the intended power level, and the discharge can cause energy loss, heating, arcing, or damage to the waveguide structure. The breakdown limit therefore places a practical restriction on the maximum microwave power that can be transmitted through a capacitive window. This is an important reason why capacitive windows are not used as extensively as some other waveguide matching structures in high power systems.
The voltage breakdown limitation becomes particularly important when the capacitive window is designed to produce a large susceptance. A stronger capacitive effect generally requires a greater modification of the electric field distribution, which can result in greater electric field concentration around the narrow region between the conducting surfaces. Increasing the insertion depth can therefore increase the desired capacitive susceptance while simultaneously reducing the electrical breakdown margin. The designer must balance the required impedance matching effect against the maximum electric field that the structure can withstand. For high power operation, the dimensions of the window must be selected carefully so that the required matching characteristics are obtained without allowing the local electric field to exceed the permissible breakdown level.
Because of this limitation, the practical use of a capacitive window requires careful consideration of both its electrical and physical dimensions. The insertion depth, aperture size, conductor geometry, operating frequency, waveguide medium, and transmitted power all influence the electric field concentration around the window. A design that provides an acceptable capacitive susceptance at low power may not be suitable at a much higher power level if the electric field becomes excessive. Thus, although the capacitive window provides a direct method of introducing capacitive susceptance for waveguide impedance matching, its voltage breakdown characteristic must be considered whenever significant microwave power is transmitted through the structure.
