Coupling Probes in Waveguides

Coupling Probes in Waveguides

In microwave engineering, electromagnetic energy must often be transferred between different transmission structures such as coaxial cables, resonant cavities, and waveguides. Since waveguides support electromagnetic wave propagation through guided field distributions rather than conventional current flow, a suitable coupling mechanism is required to efficiently inject microwave energy into the waveguide or extract energy from it. One of the most widely used methods for accomplishing this task is the coupling probe. A coupling probe provides an effective interface between a coaxial transmission line and a waveguide. By extending the center conductor of a coaxial line into the waveguide, microwave energy can be transferred through interaction with the electric field distribution inside the waveguide. Because of their simple construction, high efficiency, and ease of implementation, coupling probes are extensively used in radar systems, satellite communication equipment, microwave transmitters, receivers, resonators, laboratory instruments, and RF test systems. The design and placement of a coupling probe directly affect the amount of power transferred, the bandwidth of operation, the impedance matching characteristics, and the overall performance of the microwave system. Therefore, understanding the theory and operation of coupling probes is essential for the design of efficient waveguide-based communication systems.

Why Coupling is Required in Waveguides

Unlike low-frequency circuits where electrical energy can be transferred simply through conductive connections, microwave systems require special techniques for launching and receiving electromagnetic waves. A waveguide does not support ordinary current flow in the same manner as a transmission line. Instead, energy propagates through the guide in the form of electromagnetic field patterns known as modes.

Whenever microwave power generated by an oscillator, amplifier, or signal source must be introduced into a waveguide, a transition structure is required to convert the energy from the transmission line mode into a waveguide mode. Similarly, when microwave energy must be extracted from a waveguide and delivered to a detector, receiver, or measuring instrument, an appropriate coupling mechanism must be provided.

The coupling device must satisfy several important requirements:

• Efficient transfer of microwave power.
• Minimum reflection at the junction.
• Proper impedance matching.
• Selective excitation of the desired mode.
• Stable operation over the required frequency range.

Coupling probes fulfill these requirements and therefore represent one of the most practical solutions for waveguide excitation.

What is a Coupling Probe?

A coupling probe is a metallic conductor inserted into a waveguide for the purpose of transferring electromagnetic energy between a coaxial transmission line and the waveguide structure. The probe is usually formed by extending the center conductor of a coaxial cable through one wall of the waveguide. When microwave current flows through the probe, an electric field is generated around it. This electric field interacts with the natural electric field distribution of the waveguide mode and launches electromagnetic waves inside the guide. Because the probe primarily interacts with the electric field, probe coupling is commonly referred to as electric-field coupling. The amount of energy transferred depends upon the probe dimensions, its orientation, and its position inside the waveguide. In practical microwave systems, coupling probes are used not only to inject energy into waveguides but also to extract energy from microwave oscillators, resonators, amplifiers, and measurement devices.

Probe Coupling versus Loop Coupling

Probe coupling and loop coupling are the two most commonly used methods for coupling microwave energy to waveguides and resonators. Although both techniques serve the same general purpose, their operating principles are fundamentally different. A coupling probe interacts primarily with the electric field inside the waveguide. The probe behaves similarly to a small antenna that radiates electric-field energy into the guide. A coupling loop, on the other hand, interacts primarily with the magnetic field. Current flowing through the loop generates magnetic flux, which couples to the magnetic field distribution of the waveguide mode.

Therefore:

Probe Coupling  is for Electric Field Coupling

Loop Coupling is for Magnetic Field Coupling

The choice between a probe and a loop depends upon both electrical and mechanical considerations. Engineers must evaluate factors such as frequency range, desired mode of propagation, available space, power handling requirements, bandwidth requirements, and ease of fabrication before selecting the appropriate coupling method. In many microwave systems, probe coupling is preferred because of its simple structure and its ability to efficiently excite dominant waveguide modes.

Construction of a Coupling Probe

The basic construction of a coupling probe consists of a coaxial transmission line connected to the wall of a waveguide. The outer conductor of the coaxial line is electrically connected to the metallic waveguide wall, while the inner conductor extends into the waveguide and acts as the coupling element. The protruding center conductor functions as a radiating probe. Depending upon the design requirements, the probe may extend only a short distance into the guide or may penetrate deeply into the waveguide structure.

In some applications, the center conductor extends completely through the waveguide. Under such conditions, both electric and magnetic coupling mechanisms may be present simultaneously.

The probe dimensions must be carefully selected because the length of the probe directly affects:

• Coupling efficiency
• Input impedance
• Bandwidth
• Power transfer capability
• Standing wave ratio

For this reason, probe dimensions are often optimized experimentally or through electromagnetic simulation during microwave system design.

Location of the Coupling Probe in a Rectangular Waveguide

The position of the probe inside the waveguide plays a crucial role in determining coupling efficiency. For maximum power transfer, the probe should be located where the electric field intensity of the desired mode reaches its highest value.

In a rectangular waveguide operating in the dominant TE₁₀ mode, the electric field distribution is maximum at the center of the broad wall, commonly known as the a-wall. Since the electric field is strongest at this location, placing the probe here allows maximum interaction between the probe-generated field and the natural field distribution of the waveguide.

The most efficient location for a coupling probe is therefore:

• At the center of the broad wall.
• Parallel to the narrow wall.
• At a position where the electric field reaches its maximum value.

When the probe is positioned away from the electric-field maximum, coupling efficiency decreases and less microwave power is transferred into the waveguide. Similarly, improper orientation of the probe may result in poor mode excitation and increased reflections at the coupling junction. Therefore, accurate probe placement is one of the most important design considerations in waveguide coupling systems.

Mechanical and Electrical Design Considerations

The selection of a coupling probe involves more than simply inserting a conductor into the waveguide. Both mechanical and electrical aspects must be carefully considered. From a mechanical perspective, the probe must be rigid enough to maintain its position and withstand vibration, thermal expansion, and environmental conditions. The mounting arrangement should provide reliable electrical contact while preventing unwanted mechanical movement. From an electrical perspective, the probe must provide proper impedance matching, efficient mode excitation, and stable operation throughout the required frequency range. A well-designed probe achieves maximum power transfer while minimizing reflections, insertion loss, and mode conversion effects. These considerations become increasingly important as the operating frequency increases into the microwave and millimeter-wave regions.

Working Principle of a Coupling Probe

The operation of a coupling probe is based on the interaction between the electric field generated by the probe and the electromagnetic field distribution inside the waveguide. When microwave power is applied through a coaxial transmission line, an alternating current flows through the center conductor. Since the center conductor extends into the waveguide, it behaves as a radiating element and produces an electric field in the surrounding region. According to Maxwell's equations, a time-varying electric field produces a time-varying magnetic field, and together these fields form an electromagnetic wave. The generated electromagnetic wave interacts with the field configuration supported by the waveguide and begins propagating through the guide in the desired mode. The coupling process is highly dependent upon the alignment of the probe with respect to the electric field of the propagating mode. Maximum energy transfer occurs when the probe is oriented parallel to the electric field lines of the desired mode. Under this condition, the probe efficiently excites the electromagnetic fields required for wave propagation. The probe essentially acts as a transition device that converts the energy carried by the coaxial transmission line into a guided electromagnetic wave inside the waveguide.

Electric Field Coupling Mechanism

A coupling probe primarily couples to the electric field component of the electromagnetic wave. When microwave current flows through the metallic probe, electric field lines originate from the probe and terminate on the surrounding conducting surfaces of the waveguide.

As the microwave signal alternates, the electric field continuously changes in magnitude and direction. These varying electric fields establish the required field pattern inside the waveguide and initiate wave propagation. The strength of coupling depends upon the amount of overlap between the probe-generated electric field and the natural electric field distribution of the desired waveguide mode. When the field distributions closely match, efficient energy transfer occurs. If the probe is positioned in a region where the electric field is weak, only a small portion of the supplied microwave energy is transferred into the guide. Consequently, coupling efficiency decreases and reflected power increases. For this reason, the probe is normally installed at locations where the electric field reaches its maximum value.

Current Flow Through the Probe

The coupling probe behaves as a conducting element carrying high-frequency current. The alternating current supplied by the microwave source flows through the probe and produces an electromagnetic field around it. Because microwave frequencies are extremely high, the current distribution along the probe is not uniform. Instead, standing-wave effects become significant and influence the impedance presented by the probe. The probe therefore behaves similarly to a small monopole antenna located inside the waveguide. Just as an antenna radiates energy into free space, the coupling probe radiates energy into the confined environment of the waveguide. The resulting electromagnetic field then propagates through the guide according to the waveguide's supported modes.

Probe as a Quarter-Wavelength Antenna

A coupling probe can be viewed as a microwave antenna operating within the waveguide structure. When the probe dimensions are properly selected, it behaves similarly to a quarter-wavelength monopole antenna. The probe converts electrical energy from the coaxial transmission line into electromagnetic energy within the waveguide. Efficient operation occurs when the probe length is appropriately related to the operating wavelength. At microwave frequencies, the probe dimensions are generally much smaller than the overall dimensions of the waveguide. Nevertheless, the probe can still launch substantial electromagnetic energy because it is located in a region of strong electric field. The antenna-like behavior of the probe is one of the reasons why probe coupling is highly effective for exciting dominant waveguide modes.

Short-Circuited Waveguide Configuration

In practical microwave systems, the end of the waveguide near the probe is often terminated with a metallic short circuit. The short-circuited section creates standing waves inside the waveguide. At the short-circuit plane, the tangential electric field must be zero because the surface is perfectly conducting. Moving away from the short circuit, the electric field gradually increases until it reaches a maximum value. The field distribution along the guide resembles the standing-wave pattern observed on transmission lines. Certain locations correspond to electric-field minima, while others correspond to electric-field maxima. Placing the probe at a location where the electric field reaches its maximum value allows the greatest amount of microwave energy to be coupled into the guide.

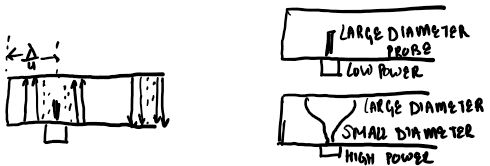

Quarter-Guide-Wavelength Placement

The most common arrangement places the probe approximately one-quarter guide wavelength from the short-circuit end of the waveguide.

This distance is given by:

$ \frac{\lambda_g}{4} $

where:

$ \lambda_g $

is the guide wavelength corresponding to the propagating mode. At this location, the standing-wave pattern produces a maximum electric field. Since the coupling probe responds primarily to the electric field, positioning it at this point results in maximum energy transfer. The quarter-guide-wavelength spacing is one of the most important design rules used in waveguide probe coupling.

Reason for Maximum Coupling at λ_g/4

The electric field inside a short-circuited waveguide varies with distance from the conducting termination. Exactly at the short circuit, the electric field is zero. As the distance increases, the electric field magnitude increases and reaches a maximum value approximately one-quarter guide wavelength away. Since the coupling probe interacts directly with the electric field, the strongest coupling occurs at the electric-field maximum. When the probe is moved away from this position, the electric field intensity decreases and less energy is coupled into the waveguide.

As a result:

• Maximum electric field produces maximum coupling.
• Maximum coupling produces maximum power transfer.
• Maximum power transfer reduces reflected energy.
• Reduced reflections improve impedance matching.

Therefore, locating the probe approximately one-quarter guide wavelength from the short-circuit end provides optimum operating conditions.

Energy Injection into a Waveguide

When microwave power is supplied to the coupling probe, electromagnetic energy is launched into the waveguide. The electric field generated by the probe establishes the required field configuration of the desired propagation mode. Once the mode is excited, the electromagnetic wave begins travelling along the waveguide. The metallic walls confine the fields and guide the energy toward the load or antenna connected to the opposite end. The amount of injected energy depends upon several factors, including probe length, probe position, operating frequency, waveguide dimensions, and impedance matching conditions. A properly designed coupling probe can transfer a large percentage of the available microwave power into the waveguide with very little reflection.

Energy Extraction from a Waveguide

The process of extracting microwave energy from a waveguide is simply the reverse of the injection process. As an electromagnetic wave propagates through the guide, its electric field interacts with the probe. The changing electric field induces a voltage and current in the probe conductor. The induced current flows through the center conductor of the coaxial line and carries the microwave signal to external circuitry such as receivers, detectors, amplifiers, or measuring instruments. Because the same physical mechanism governs both transmission and reception, the same type of coupling probe can be used for injecting energy into a waveguide and for extracting energy from it. This bidirectional capability makes coupling probes extremely useful in radar systems, communication equipment, microwave measurement setups, resonators, and laboratory experiments.

Factors Affecting Coupling Efficiency

The efficiency of a coupling probe depends on how effectively microwave energy is transferred between the coaxial transmission line and the waveguide. Although the operating principle of a probe is relatively simple, several physical and electrical parameters influence the amount of power that can be coupled into the waveguide.

The most important factors include:

• Probe length
• Probe diameter
• Probe position inside the waveguide
• Probe orientation
• Operating frequency
• Waveguide dimensions
• Impedance matching conditions

Even a small change in any of these parameters can significantly alter the coupling coefficient and overall system performance.

For this reason, probe dimensions and placement are usually optimized during the design stage to obtain the desired bandwidth, power transfer capability, and impedance characteristics.

Effect of Probe Length

Probe length is one of the most critical parameters in waveguide coupling. Since the probe behaves similarly to a small monopole antenna, its electrical length determines how efficiently it can interact with the electric field inside the waveguide. If the probe is too short, only a small electric field is generated. As a result, the amount of microwave energy transferred into the guide becomes limited. If the probe is excessively long, the probe impedance changes and unwanted reflections may occur at the coupling junction.

A properly chosen probe length provides:

• Maximum power transfer
• Minimum reflected power
• Improved impedance matching
• Stable operation over the desired frequency range

The optimum probe length depends upon the operating frequency and waveguide dimensions. In practical microwave systems, the final dimensions are often determined through electromagnetic simulation or experimental adjustment.

Effect of Probe Position

The location of the probe within the waveguide directly influences the amount of energy transferred. Since the probe couples to the electric field, it should be placed where the electric field intensity is strongest. For the dominant TE₁₀ mode of a rectangular waveguide, the electric field reaches its maximum value at the center of the broad wall.

Consequently:

Maximum electric field → Maximum coupling
Maximum coupling → Maximum power transfer

Moving the probe away from this location reduces the overlap between the probe field and the waveguide field distribution. This decreases coupling efficiency and increases reflected power. Improper positioning may also lead to excitation of unwanted modes, particularly at higher frequencies where multiple propagation modes are possible.

Effect of Probe Orientation

The orientation of the probe relative to the electric field is equally important. A probe couples most efficiently when it is aligned parallel to the electric field lines of the desired propagation mode. When the probe is correctly oriented, the generated electric field reinforces the natural field distribution inside the waveguide. This results in efficient mode excitation and improved power transfer. If the probe is rotated away from the electric-field direction, the interaction between the two fields becomes weaker and the coupling efficiency decreases.

Therefore, probe orientation must always be selected according to the field pattern of the mode being excited.

Effect of Probe Diameter

The diameter of the coupling probe has a significant influence on bandwidth and impedance characteristics. A thin probe generally provides strong coupling at a particular frequency but may exhibit a relatively narrow operating bandwidth. As the probe diameter increases, the coupling characteristics become less sensitive to frequency variations.

Consequently:

Larger probe diameter resultWider bandwidth

This characteristic is particularly useful in broadband microwave systems where stable performance is required across a wide frequency range. The increased diameter also improves mechanical strength and enhances reliability in high-power applications.

Effect of Probe Surface Area

The power handling capability of a coupling probe is strongly related to its surface area. When microwave power flows through the probe, current is concentrated near the conductor surface because of the skin effect. If the available surface area is small, current density increases and conductor heating becomes more significant. Increasing the surface area distributes the current over a larger conducting region and reduces current density.

As a result:

Larger surface area result Higher power handling capability

This is one reason why high-power microwave systems frequently employ larger probes or specially shaped coupling structures.

Methods of Controlling Coupling Strength

The amount of energy transferred into a waveguide can be adjusted by modifying the probe geometry or its location.

Several methods are commonly used to reduce coupling when weaker interaction is required:

• Reducing the probe length
• Moving the probe away from the electric-field maximum
• Partially shielding the probe
• Changing the probe orientation
• Reducing the insertion depth

These adjustments allow engineers to obtain the desired coupling coefficient for a particular microwave application.

Impedance Matching Requirements

Efficient microwave power transfer requires proper impedance matching between the coaxial line and the waveguide. If the impedances are not matched, a portion of the incident energy is reflected back toward the source. Reflections create standing waves and reduce the amount of useful power delivered to the waveguide.

A properly matched coupling probe provides:

• Low reflection coefficient
• Low VSWR
• Improved power transfer efficiency
• Reduced insertion loss

Careful probe design is therefore essential for achieving optimum microwave system performance.

Techniques Used for Impedance Matching

Several practical techniques are employed to improve matching between a probe and a waveguide. One commonly used method is enlarging the center conductor where it enters the waveguide. The increased conductor area modifies the local impedance and improves power transfer. Another technique involves increasing the height of the waveguide near the probe location. This changes the field distribution and helps achieve a better impedance transition. Tapered transitions are also widely used in microwave engineering. A gradual change in dimensions reduces abrupt impedance discontinuities and minimizes reflections.

In many practical systems, impedance transformers are incorporated into the waveguide structure to provide broadband matching characteristics.

Common matching methods include:

• Expanded center conductor
• Modified waveguide dimensions
• Tapered transitions
• Impedance transformers
• Optimization of probe length and position

Bandwidth Considerations

Bandwidth is an important performance parameter in microwave systems. A coupling probe should ideally maintain efficient power transfer throughout the required operating frequency range.

Several factors influence probe bandwidth:

• Probe diameter
• Probe geometry
• Waveguide dimensions
• Matching network design
• Operating mode

Broadband probe designs generally employ larger conductors, smoother impedance transitions, and carefully optimized dimensions. A well-designed coupling probe can provide efficient operation across a substantial frequency range while maintaining low reflection levels and stable electrical characteristics.

Excitation of Waveguide Modes Using Coupling Probes

One of the most important functions of a coupling probe is the excitation of specific waveguide modes. Since a waveguide can support multiple field configurations, the location, orientation, and phase of the probe determine which mode will be generated inside the guide. Each propagation mode possesses a unique electric-field distribution and magnetic-field distribution. Efficient excitation occurs only when the field generated by the probe closely resembles the field pattern of the desired mode. The coupling probe must therefore be positioned where the electric field of the selected mode reaches its maximum value and aligned in the same direction as the electric field lines. Failure to satisfy these conditions may reduce coupling efficiency or excite unwanted higher-order modes.

Excitation of the Dominant TE₁₀ Mode

In rectangular waveguides, the dominant mode is TE₁₀. This mode is the most widely used because it possesses the lowest cutoff frequency and exhibits excellent transmission characteristics. The electric field of the TE₁₀ mode reaches its maximum value at the center of the broad wall of the waveguide.

For efficient excitation of TE₁₀:

• The probe is placed at the center of the broad wall.
• The probe is oriented parallel to the electric field.
• The probe is located approximately λ_g/4 from the short-circuit end.

Under these conditions, the electric field generated by the probe strongly couples to the TE₁₀ field distribution, producing maximum power transfer. This arrangement is used extensively in microwave transmitters, receivers, radar systems, laboratory equipment, and waveguide-fed antennas.

Excitation of Higher-Order Modes

Waveguides are capable of supporting many propagation modes once the operating frequency exceeds their respective cutoff frequencies.

Examples include:

TE₂₀, TE₀₁, TE₁₁, TM₁₁, TM₂₁

These higher-order modes possess field distributions that differ significantly from the dominant mode. Since the electric-field maxima occur at different locations, the probe position required for efficient excitation also changes.

To excite a particular higher-order mode:

• The probe must be placed where that mode exhibits maximum electric field.
• The probe orientation must match the field direction.
• The probe dimensions must support efficient coupling at the desired frequency.

Accurate placement becomes increasingly important because higher-order modes often have multiple field maxima and more complex field patterns.

Use of Multiple Probes

Certain microwave systems require field distributions that cannot be produced efficiently using a single coupling probe. In such cases, two or more probes may be employed. Multiple probes allow engineers to generate more complex electromagnetic field configurations and improve control over mode excitation.

The use of multiple probes is common in:

• High-power microwave systems
• Waveguide antennas
• Circularly polarized structures
• Mode converters
• Microwave resonators
• Radar feed networks

When several probes are used simultaneously, both their physical placement and excitation phase must be carefully controlled.

Phase Relationship Between Multiple Probes

The electromagnetic fields generated by multiple probes combine according to the principle of superposition. Consequently, the phase difference between the excitation signals determines the final field distribution inside the waveguide. If the probes are excited in the correct phase relationship, the desired mode is reinforced and power transfer becomes highly efficient. Conversely, incorrect phase relationships may produce undesirable field patterns and excite unwanted modes.

Typical situations include:

In-phase excitation result Reinforcement of the desired mode, Out-of-phase excitation results Cancellation of certain field components, Quadrature excitation resultsGeneration of circular or rotating field patterns Because of these effects, phase control is a critical aspect of multiple-probe waveguide systems.

Removal of Microwave Energy Using a Probe

The same probe structure used for injecting energy into a waveguide can also be used for extracting energy from it. As an electromagnetic wave propagates through the guide, its electric field interacts with the metallic probe. The varying electric field induces a voltage across the probe conductor and causes microwave current to flow through the connected coaxial transmission line.

The extracted signal may then be delivered to:

• Microwave receivers
• Amplifiers
• Spectrum analyzers
• Power meters
• Network analyzers
• Detection circuits

The energy extraction process follows exactly the same electromagnetic principles as the injection process, but in the reverse direction.

Applications of Coupling Probes

Coupling probes are widely used throughout microwave engineering because of their simplicity, efficiency, and versatility. Some of the most common applications include:

• Waveguide excitation systems
• Microwave transmitters
• Microwave receivers
• Radar equipment
• Satellite communication systems
• Waveguide-fed antennas
• Resonant cavities
• Microwave oscillators
• Power amplifiers
• Microwave measurement instruments

Their ability to provide efficient coupling over a wide frequency range makes them one of the most important waveguide components used in practical microwave systems.

Advantages of Coupling Probes

Probe coupling offers several advantages that contribute to its widespread use in microwave engineering.

• Simple construction.
• Easy integration with coaxial transmission lines.
• Efficient excitation of dominant waveguide modes.
• Low manufacturing cost.
• Good impedance matching characteristics.
• Suitable for both transmission and reception.
• Adaptable to a wide range of frequencies.
• Capable of handling significant microwave power levels.

These advantages make probe coupling one of the most practical and reliable methods for transferring microwave energy into and out of waveguide structures.

Comparison Between Coupling Probe and Coupling Loop

Although both probes and loops are used for microwave coupling, their operating principles are different.

Coupling Probe	Coupling Loop
Couples primarily to the electric field.	Couples primarily to the magnetic field.
Acts like a small monopole antenna.	Acts like a small current loop.
Used where electric-field maxima exist.	Used where magnetic-field maxima exist.
Commonly used for TE-mode excitation.	Commonly used in resonators and cavity coupling.
Simple physical construction.	Requires loop formation and orientation control.

A coupling probe is one of the most effective devices used for transferring microwave energy between coaxial transmission lines and waveguides. By extending the center conductor of a coaxial line into the waveguide, electromagnetic energy can be efficiently injected into or extracted from the guide through electric-field interaction. The performance of a coupling probe depends strongly on its dimensions, orientation, location, impedance matching characteristics, and operating frequency. Proper placement at the electric-field maximum and approximately one-quarter guide wavelength from a short-circuit termination provides highly efficient power transfer. Because of their simple design, excellent coupling characteristics, and broad range of applications, coupling probes remain a fundamental component in modern microwave engineering and waveguide communication systems.
