Density and Velocity Modulation

2080 Baishakh Regular: What is density modulation?

Velocity Modulation in Microwave Devices

The velocity modulation of an electron beam is an important principle used in several microwave devices for controlling the motion of electrons and producing useful interaction with radio-frequency electromagnetic fields. In a microwave generator or amplifier, an electron beam is made to interact with an RF electric field so that the velocities of individual electrons are changed according to their positions in the RF cycle. Some electrons gain energy and move faster, while others lose energy and move more slowly. This variation in electron velocity is called velocity modulation.

Velocity modulation is particularly important in microwave vacuum devices because the electron beam provides a means of transferring energy between the electron stream and the RF field. The process begins when electrons enter an interaction region containing an RF electric field. Depending on the instantaneous direction and magnitude of the electric field, an electron may experience an accelerating or retarding force. The resulting change in electron velocity provides the initial condition required for electron bunching and subsequent RF energy interaction.

What Is Velocity Modulation?

Velocity modulation is the process in which the velocity of electrons in an electron beam is varied by an applied RF electric field. Before entering the interaction region, the electrons may be moving with approximately the same initial velocity. When the beam passes through an RF electric field, however, different electrons encounter different phases of the RF field. Consequently, some electrons are accelerated, some are retarded, and some may experience little or nearly zero net change in velocity.

Thus, velocity modulation does not initially mean that the number of electrons has changed. Instead, it means that the velocity distribution of the electrons has become non-uniform. The electron beam now contains faster and slower electrons, even though the electrons may still be approximately uniformly distributed immediately after the interaction region.

The basic physical process can therefore be represented as

\[ \text{RF electric field}\rightarrow\text{change in electron velocity}\rightarrow\text{velocity modulation} \]

Electron Beam and RF Electric Field

An electron beam consists of a stream of electrons moving through a device with an approximately controlled initial velocity. In microwave vacuum devices, the beam is produced by an electron source and is directed through an interaction region in which it can interact with an electromagnetic field. The beam may be accelerated by a DC electric field before entering the RF interaction region so that the electrons have a suitable initial kinetic energy.

The RF electric field varies continuously with time. Therefore, an electron entering the interaction region at one instant may experience a different electric-field condition from another electron entering at a different instant. The force acting on an electron is related to the electric field by

\[ \mathbf{F}=q\mathbf{E} \]

where \(q\) is the charge of the particle and \(\mathbf{E}\) is the electric field. Since an electron has negative charge, the direction of the force on the electron is opposite to the direction of the electric field.

As the RF field changes with time, the force acting on the electrons also changes. This produces variations in the kinetic energy and velocity of the electrons as they pass through the interaction region.

Interaction Between Electrons and the RF Field

When an electron beam enters an RF interaction region, the electrons do not all encounter exactly the same phase of the RF electric field. The electric field may be directed in a manner that increases the kinetic energy of some electrons while decreasing the kinetic energy of others. The amount of energy exchanged depends on the phase of the RF field experienced by the electron.

An electron that experiences an accelerating RF field gains kinetic energy. Its velocity therefore increases. An electron that experiences a retarding RF field loses kinetic energy, resulting in a decrease in velocity. Electrons passing through a region where the net RF electric field produces little energy exchange may experience only a small change in velocity.

Therefore, after passing through the RF interaction region, the electron beam no longer consists of electrons having exactly the same velocity. Instead, different electrons have different velocities according to the phase of the RF field at the time they interacted with it.

Accelerating and Retarding Electric Fields

The RF electric field can either accelerate or retard an electron depending on the phase of the RF cycle and the direction of the electron's motion. When the electric force acts so that the electron gains kinetic energy, the electron is accelerated and its velocity increases. When the force acts against the electron's motion, the electron loses kinetic energy and its velocity decreases.

Consider an electron beam moving approximately in the positive \(z\)-direction. During one part of the RF cycle, electrons may experience an electric-field condition that increases their forward velocity. During another part of the cycle, electrons may experience a condition that reduces their forward velocity. Consequently, the RF field creates a velocity variation along the electron beam.

The important point is that the RF field does not necessarily change every electron by the same amount. The change depends on the phase at which each electron interacts with the field. This phase-dependent interaction is the fundamental mechanism responsible for velocity modulation.

How Electron Velocity Changes

The kinetic energy of an electron is related to its velocity. For non-relativistic electron motion, the kinetic energy can be expressed as

\[ W_k=\frac{1}{2}mv^2 \]

where \(W_k\) is the kinetic energy, \(m\) is the electron mass, and \(v\) is the electron velocity. When an electron gains energy from the RF field, its kinetic energy increases and its velocity increases. When it gives energy to the RF field or experiences a retarding field, its kinetic energy decreases and its velocity decreases.

If the electrons initially have an average velocity \(v_0\), the RF interaction produces velocity variations around this initial value. The resulting velocity can therefore be represented conceptually as an average velocity with an RF-dependent variation.

\[ v=v_0+\Delta v \]

where \(v_0\) is the initial or average electron velocity and \(\Delta v\) represents the velocity variation produced by the RF field. The exact velocity variation depends on the electron's initial energy, the RF field strength, the interaction length, and the phase of the RF field.

Electrons Moving at Different Velocities

Before velocity modulation, electrons in an idealized electron beam can be considered to have approximately the same average velocity. After interaction with the RF field, this condition changes. Some electrons become faster and some become slower. The beam therefore contains electrons with different velocities.

For example, consider three electrons entering an RF interaction region at different phases. One electron may experience an accelerating field and leave the region with a velocity greater than \(v_0\). Another may experience a retarding field and leave with a velocity less than \(v_0\). A third electron may pass through a phase where the net energy exchange is small and retain a velocity close to \(v_0\).

At this stage, the primary change is in electron velocity, not electron concentration. The electrons may still be distributed along the beam without forming clearly defined bunches. The subsequent propagation of these electrons is what produces the density variation discussed in the next stage of electron-beam modulation.

Velocity Modulation at the Instant of RF-Field Interaction

The instant at which an electron interacts with the RF field is important because the RF field is continuously varying. Suppose an electron enters the interaction region at \(t=0\). The electric field existing at that instant determines the initial direction and magnitude of the force acting on the electron. Other electrons entering at different times experience different phases of the RF field and therefore receive different velocity changes.

This can be visualized as a sequence in which electrons encounter the RF field at different points of its cycle. Some electrons are accelerated, some are retarded, and others experience an intermediate condition. As a result, the electron beam emerging from the interaction region contains a velocity variation that follows the RF-field phase.

\[ t=0\quad\longrightarrow\quad\text{RF interaction}\quad\longrightarrow\quad v=v_0+\Delta v \]

The velocity modulation is therefore created during the interaction between the electron beam and the RF electric field. The electrons then continue to travel through the device with the modified velocities.

Effect of RF-Field Phase on Electron Velocity

The phase of the RF electric field determines whether an electron is accelerated, retarded, or only weakly affected. Since the electric field changes periodically, electrons entering the interaction region at different phases experience different forces. This produces a periodic variation in electron velocity.

The relationship can be described qualitatively as follows:

Accelerating phase: the electron gains kinetic energy and its velocity increases.
Retarding phase: the electron loses kinetic energy and its velocity decreases.
Near-zero interaction phase: the net velocity change may be small.

Therefore, the RF field acts as a means of controlling the velocity of the electron beam. The phase-dependent velocity variation is the foundation of velocity modulation in microwave vacuum devices.

Initial Electron Spacing After Velocity Modulation

Immediately after velocity modulation, the electrons do not necessarily form dense groups. The primary result of the RF interaction is that the electrons have different velocities. Their initial spacing may still be approximately the same as before the interaction because the velocity change occurs over the interaction region in a relatively short distance.

As the electrons continue travelling, however, the difference in velocity begins to affect their relative positions. Faster electrons can move closer to slower electrons ahead of them. Conversely, slower electrons may move farther behind. This gradual change in electron spacing eventually produces regions where electrons become concentrated. That later process is known as electron bunching and leads to density modulation.

Thus, velocity modulation should be regarded as the initial stage of a larger electron-beam modulation process. It creates the velocity differences that make subsequent electron bunching possible.

Velocity Modulation Versus Ordinary Electron Motion

Ordinary electron motion simply refers to the movement of electrons through a device under the influence of applied electric and magnetic fields. Velocity modulation is more specific. It refers to the deliberate or natural variation of electron velocity produced by an RF field as the electrons pass through an interaction region.

In an unmodulated beam, electrons can be approximated as having a common average velocity. In a velocity-modulated beam, different electrons have different velocities because they have experienced different phases of the RF field. The distinction is important because the velocity difference provides the mechanism by which electron bunches can subsequently form.

Feature	Ordinary Electron Beam	Velocity-Modulated Electron Beam
Electron velocity	Approximately uniform average velocity	Velocity varies among electrons
Main cause	Beam acceleration and normal particle motion	Interaction with an RF electric field
RF phase dependence	No intentional RF velocity variation	Velocity depends on RF-field phase
Electron spacing	Approximately unchanged for an ideal uniform beam	Begins changing as electrons propagate
Role in microwave devices	Provides electron transport	Provides the velocity variation required for electron bunching and RF interaction

Role of Transit Time in Velocity Modulation

Transit time is closely related to velocity modulation because electrons require a finite amount of time to travel through the RF interaction region. During this time, the RF electric field changes continuously. Therefore, the electron does not experience a static electric field throughout its entire passage. The interaction between the electron and the RF field depends on the phase of the RF field during the electron's transit.

If the interaction time is extremely small compared with the RF period, the field experienced by an electron may change only slightly during its passage. When the interaction time becomes a significant fraction of the RF period, the time variation of the field becomes important. This is one reason why transit-time considerations are fundamental in microwave electron-beam devices.

The transit time through an interaction region of length \(L\) can be represented by

\[ t_r=\frac{L}{v} \]

where \(v\) is the electron velocity through the region. The RF period is

\[ T=\frac{1}{f} \]

The relative importance of transit time can therefore be examined using the ratio

\[ \frac{t_r}{T} \]

This ratio indicates how much of an RF cycle an electron experiences while travelling through the interaction region. Consequently, the physical dimensions of the interaction region, electron velocity, and operating frequency must be considered when designing a microwave device based on electron-beam interaction.

Importance of Velocity Modulation in Microwave Generators

Velocity modulation is important in microwave generators because it provides a method for converting the energy of an electron beam into useful RF energy. The electron beam is first given suitable kinetic energy and then allowed to interact with an RF electric field. The resulting velocity variation causes some electrons to move faster and others to move slower. As the beam travels farther through the device, these velocity differences can produce electron bunches.

The formation of electron bunches is particularly useful because a concentrated group of electrons can interact more effectively with an RF field. Under appropriate conditions, the electrons can transfer kinetic energy to the electromagnetic field, allowing microwave energy to be generated or amplified.

Therefore, velocity modulation is not simply a disturbance of the electron beam. It is a controlled mechanism used to prepare the electron beam for subsequent bunching and energy exchange. The principle is especially important in microwave vacuum devices such as klystrons.

Velocity Modulation in Klystron Operation

In a klystron, velocity modulation is a fundamental part of the process by which the electron beam interacts with microwave fields. The electron beam passes through an RF interaction region commonly associated with a cavity. The RF electric field in this region accelerates some electrons and retards others according to their phase relative to the RF field.

After leaving the initial interaction region, the electrons travel through a region where the velocity differences can develop into electron bunches. Faster electrons gradually catch up with slower electrons ahead of them, producing regions of increased electron concentration. The resulting density variation allows the electron beam to interact strongly with a subsequent RF field and exchange energy with it.

density-and-velocity-modulation-1

The basic sequence in a klystron can therefore be represented as

\[ \text{RF field}\rightarrow\text{velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\rightarrow\text{RF energy interaction} \]

This sequence shows why velocity modulation is studied before density modulation. Velocity modulation creates the initial difference in electron velocities, while the subsequent motion of those electrons produces bunching and density variation. These concepts together form the basis for understanding the operation of klystron-type microwave devices.

Key Points of Velocity Modulation

Velocity modulation is the variation of electron velocity caused by interaction with an RF electric field.
Electrons experience different RF-field phases as they pass through the interaction region.
Electrons experiencing an accelerating field gain kinetic energy and increase their velocity.
Electrons experiencing a retarding field lose kinetic energy and decrease their velocity.
The basic velocity relationship can be represented as \(\displaystyle v=v_0+\Delta v\).
Immediately after velocity modulation, the main change is in electron velocity rather than electron concentration.
Different electron velocities cause the electron spacing to change as the beam propagates.
The resulting electron bunching produces density modulation.
Transit time is important because electrons require a finite time to pass through the RF interaction region.
Velocity modulation is an important operating principle in microwave vacuum devices, particularly klystrons.
The overall process is \(\displaystyle \text{RF field}\rightarrow\text{velocity modulation}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\).

Density Modulation and Electron Bunching in Microwave Devices

After velocity modulation, the electrons in an electron beam no longer have exactly the same velocity. Some electrons move faster than the average velocity, while others move more slowly. The electrons initially may still be distributed approximately uniformly, but their different velocities cause their relative positions to change as they travel through the device. The faster electrons gradually approach the slower electrons ahead of them, producing regions in which electrons become concentrated. This process is known as electron bunching, and the resulting variation in electron concentration along the beam is called density modulation.

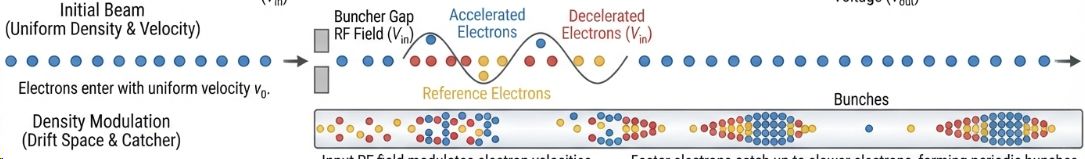

density-and-velocity-modulation-2

Density modulation is therefore a natural consequence of velocity modulation when the modulated electron beam is allowed to propagate through an appropriate region of the microwave device. The process does not occur instantaneously at the point where velocity modulation is produced. Instead, the electrons require a certain distance and time to develop significant bunching. This is why the region between the initial velocity-modulating structure and the next interaction region is important in many microwave devices.

The complete physical sequence can be represented as

\[ \text{Velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation} \]

What Is Density Modulation?

Density modulation is the periodic variation in the concentration of electrons along an electron beam. In an unmodulated beam, the electrons can be considered to have an approximately uniform distribution, so the number of electrons passing through different sections of the beam remains relatively constant over time. After velocity modulation and subsequent propagation, however, electrons begin to group together in some regions and become more widely separated in other regions.

The regions containing a larger concentration of electrons are called electron bunches, while regions containing fewer electrons correspond to lower electron density. Therefore, density modulation does not primarily describe a change in the individual velocity of an electron. Instead, it describes how the number or concentration of electrons varies with position along the beam.

This distinction is important. Velocity modulation changes how fast the electrons move, whereas density modulation describes how closely the electrons are grouped together. Velocity modulation occurs first, and density modulation develops as the velocity-modulated electrons travel through the device.

Formation of Electron Bunches

Consider an electron beam in which electrons initially move with approximately the same velocity. After passing through an RF interaction region, the electrons acquire different velocities because they experience different phases of the RF electric field. Some electrons become faster than the average beam velocity, while others become slower.

Once these electrons leave the velocity-modulating region, they continue moving in approximately the same general direction. The faster electrons gradually reduce the distance between themselves and slower electrons ahead of them. At the same time, slower electrons may fall farther behind the faster electrons following them. As this process continues, electrons become concentrated into groups.

These concentrated groups of electrons are called electron bunches. The formation of the bunches is therefore a result of the velocity differences created during the earlier velocity-modulation process.

The process can be represented as

\[ \text{RF interaction}\rightarrow\text{velocity variation}\rightarrow\text{relative electron motion}\rightarrow\text{electron bunching} \]

How Different Electron Velocities Produce Bunching

The formation of an electron bunch can be understood by considering electrons that have different velocities but are travelling in the same general direction. Suppose a slower electron is ahead of a faster electron. Because the faster electron travels a greater distance during the same time interval, it gradually approaches the slower electron.

If the velocity difference is sufficiently large and the electrons travel through a suitable distance, the faster electron can move much closer to the slower electron. Many electrons with different initial velocities can undergo the same process. As a result, several electrons that were initially separated become concentrated within a smaller region of the beam.

The important point is that electron bunching results from the relative motion of electrons. The RF field initially produces the velocity differences, while the subsequent propagation of the beam converts those velocity differences into variations in electron spacing.

Faster Electrons Catching Slower Electrons

The easiest way to visualize electron bunching is to consider two electrons travelling in the same direction. Let the electron behind have a velocity greater than the electron ahead. Because the rear electron is moving faster, the separation between the two electrons decreases with time.

If the initial separation is \(d_0\), the change in separation depends on the difference between their velocities. In a simplified constant-velocity illustration, the separation after a time \(t\) can be represented by

\[ d(t)=d_0+(v_{\text{slow}}-v_{\text{fast}})t \]

where \(v_{\text{fast}}>v_{\text{slow}}\). Therefore, the second term is negative, showing that the separation decreases as time increases.

This simplified relationship is useful for understanding the physical mechanism. In an actual microwave device, the electron velocities and RF fields may vary continuously, and space-charge forces can also influence the electron beam. Nevertheless, the essential principle remains the same: faster electrons catch up with slower electrons, causing the beam to become concentrated into bunches.

Compression of Electron Spacing

Electron bunching can also be understood as a process of spatial compression. Immediately after velocity modulation, the electrons may still have approximately their original spacing. However, because the electrons now have different velocities, that spacing does not remain constant as the beam travels forward.

Regions containing faster electrons move toward regions containing slower electrons. The distance between certain groups of electrons decreases, while other regions become more sparsely populated. The electron beam therefore develops alternating regions of relatively high and low electron concentration.

The amount of compression depends on factors such as the magnitude of the velocity variation, the initial electron spacing, the electron-beam velocity, and the distance through which the beam travels after velocity modulation. The distance required for significant bunch formation is therefore an important consideration in microwave-device design.

Regions of High and Low Electron Density

As electron bunching develops, the electron beam is no longer uniform along its length. Some regions contain a large number of electrons within a relatively small distance. These are high-density regions. Other regions contain fewer electrons because the electrons have moved away toward neighboring bunches. These are low-density regions.

The resulting electron distribution can therefore be visualized as alternating concentrations along the direction of beam propagation. The high-density regions correspond to electron bunches, while the spaces between the bunches represent lower-density regions.

This spatial variation in electron concentration is the physical meaning of density modulation. The electron beam has effectively acquired a periodic structure in its charge distribution as a result of the earlier velocity modulation.

Relationship Between Electron Position and Density

The density of an electron beam depends on how many electrons occupy a given region of space. When electrons are distributed relatively uniformly, the electron density remains approximately constant along the beam. When electrons become grouped together, the density increases in the regions containing the groups and decreases between them.

Therefore, density modulation can be described as a variation of electron density with position along the beam. If the beam travels in the \(z\)-direction, the electron density can conceptually be represented as a function of position, such as \(n(z)\), where \(n\) represents electron density.

\[ n=n(z) \]

For a periodically bunched beam, the density varies periodically along the direction of propagation. The exact mathematical description depends on the device and operating conditions, but the essential concept is that electron concentration is no longer uniform.

Density Modulation Along the Electron Beam

Density modulation develops progressively as the velocity-modulated electron beam travels away from the initial RF interaction region. Immediately after velocity modulation, the principal effect is a variation in electron velocity. As the electrons propagate, the faster electrons move closer to the slower electrons ahead, and the electron distribution gradually becomes non-uniform.

At a particular distance from the velocity-modulating region, the electron bunches may become strongly developed. If the beam continues travelling, the bunches can continue changing in size and concentration. The distance over which this development occurs is therefore important when designing an electron-beam microwave device.

The density modulation is consequently a spatially developing effect. It is produced by the propagation of a velocity-modulated beam rather than appearing immediately at the instant of RF interaction.

Role of the Drift Space in Bunch Formation

The region through which the velocity-modulated electrons travel before reaching another RF interaction region is commonly referred to as the drift space or drift region. Its purpose in electron-beam microwave devices is to provide sufficient distance and time for the velocity differences to develop into electron bunches.

At the beginning of the drift space, the electron beam primarily contains velocity variations. As the electrons move through the drift space, faster electrons approach slower electrons ahead of them. The electron distribution consequently becomes increasingly concentrated, producing density modulation.

The drift-space length is therefore an important design parameter. If the drift region is too short, the electrons may not have enough time to develop strong bunching. If the propagation conditions are properly selected, the electron bunches can reach a suitable concentration before entering a region where they interact with an RF field.

The drift space therefore provides the physical distance required for the transformation from velocity modulation to density modulation.

Electron Bunching and RF Energy Interaction

Electron bunching is important because concentrated groups of electrons can interact effectively with an RF electromagnetic field. When an electron bunch enters an appropriate RF interaction region, the phase of the RF field can be selected so that the electrons transfer part of their kinetic energy to the RF field. Under suitable operating conditions, this energy exchange can produce or amplify microwave energy.

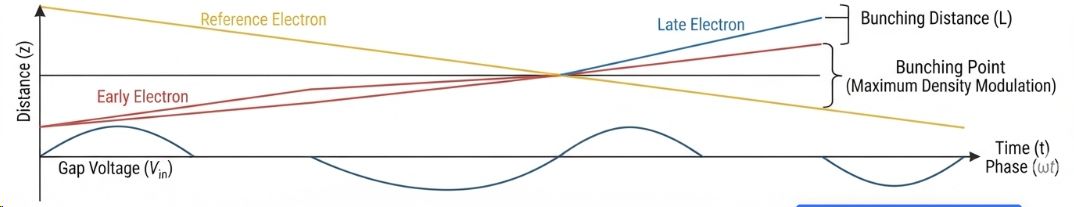

density-and-velocity-modulation-3

The density modulation therefore provides a mechanism for converting the electron-beam motion into a periodically varying beam current that can interact strongly with an RF structure. In microwave devices based on electron-beam interaction, the timing and location of the electron bunches relative to the RF field are important for achieving the desired energy transfer.

This is why electron bunching is more than simply a change in electron spacing. It is an essential step that allows the kinetic energy carried by the electron beam to participate effectively in microwave generation or amplification.

Importance of Density Modulation in Microwave Generators

Density modulation is an important concept in microwave generators because it allows an electron beam to develop concentrated groups that can interact efficiently with microwave fields. The process begins with velocity modulation, in which an RF electric field produces different electron velocities. The electrons then travel through a drift region, where the velocity differences cause them to bunch together and produce density modulation.

The resulting electron bunches can be timed with respect to an RF field so that the electrons exchange energy with the electromagnetic field in the desired direction. In microwave devices such as klystrons, this process is used to control the interaction between the electron beam and RF cavities.

Understanding density modulation is therefore essential for understanding how the motion of an electron beam can be converted into useful microwave energy. It provides the link between the initial velocity variation and the later RF energy interaction that occurs in microwave electron-beam devices.

Complete Process of Electron Bunch Formation

The complete process can be understood as a sequence of connected physical events. First, the electron beam enters an RF interaction region. The RF electric field interacts with the electrons and changes their velocities according to their phase. Some electrons become faster and others become slower. The beam then enters a drift space, where the electrons continue travelling with their modified velocities.

During propagation through the drift space, faster electrons approach slower electrons ahead of them. The separation between some electrons decreases, causing electrons to become concentrated into groups. These groups form electron bunches, and the resulting variation in electron concentration along the beam constitutes density modulation.

The overall process can therefore be represented as

\[ \text{Velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation} \]

When these density-modulated electron bunches subsequently interact with a properly phased RF field, energy can be exchanged between the electron beam and the electromagnetic field. This principle forms an important foundation for understanding microwave generators and electron-beam devices such as the klystron.

Key Points of Density Modulation and Electron Bunching

Density modulation is the variation of electron concentration along an electron beam.
Density modulation develops after velocity modulation.
Velocity modulation produces faster and slower electrons in the beam.
Faster electrons gradually catch up with slower electrons ahead of them.
The reduction in electron spacing produces concentrated groups called electron bunches.
Electron bunches form high-density regions, while the regions between bunches have comparatively lower electron density.
The electron density can be represented conceptually as a function of position, such as \(\displaystyle n=n(z)\).
The drift space provides the distance and time required for velocity differences to develop into electron bunches.
Density modulation is a spatially developing effect rather than an instantaneous result of the initial RF interaction.
Electron bunches can interact effectively with an RF field and participate in microwave energy exchange.
Velocity modulation changes electron velocity, whereas density modulation changes the spatial concentration of electrons.
The complete process is \(\displaystyle \text{Velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\).
Density modulation is particularly important in electron-beam microwave devices such as klystrons.

Relationship Between Velocity Modulation and Density Modulation

Velocity modulation and density modulation are two closely connected stages in the operation of electron-beam microwave devices. Velocity modulation occurs when an RF electric field changes the velocities of electrons in an electron beam. The resulting difference in electron velocities causes the electrons to change their relative positions as they travel through the device. Faster electrons approach slower electrons ahead of them, producing electron bunches and a corresponding variation in electron density. Thus, density modulation develops as a consequence of the velocity modulation produced by the RF field.

The relationship between these two processes is particularly important in microwave generators because the electron beam must be controlled in both velocity and spatial distribution before efficient RF energy exchange can occur. Velocity modulation provides the initial variation in electron motion, while density modulation produces concentrated electron bunches that can interact effectively with an RF field.

How Velocity Modulation Leads to Density Modulation

The formation of density modulation begins with the interaction between an electron beam and an RF electric field. Before entering the RF interaction region, the electrons can be considered to have an approximately uniform average velocity. When they pass through the RF field, however, different electrons encounter different phases of the RF cycle. Some electrons gain kinetic energy and become faster, while others lose kinetic energy and become slower.

Immediately after this interaction, the main effect is velocity modulation. The electrons have different velocities, but their spatial distribution may still be approximately uniform. As the beam continues to travel, the difference in velocity causes the relative positions of the electrons to change. Faster electrons begin approaching slower electrons ahead of them, and the electron spacing becomes increasingly non-uniform.

Eventually, electrons become concentrated into groups. These groups are called electron bunches, and the resulting variation in electron concentration along the beam is called density modulation.

\[ \text{RF electric field}\rightarrow\text{velocity variation}\rightarrow\text{electron bunching}\rightarrow\text{density variation} \]

Therefore, velocity modulation is the initial cause, while density modulation is the resulting spatial variation that develops as the modulated beam propagates.

Why Velocity Modulation Occurs First

Velocity modulation occurs first because the RF electric field directly acts on the charged electrons and changes their kinetic energy. The electric field can accelerate or retard an electron depending on the phase at which the electron interacts with the RF field. This directly changes the electron's velocity.

Density modulation, on the other hand, is not produced simply by the instantaneous action of the RF electric field. It develops because the electrons that have acquired different velocities continue to move through the device. Their different velocities cause their relative positions and spacing to change with time.

The distinction can therefore be expressed as follows:

Velocity modulation: the RF field directly changes electron velocity.
Electron bunching: the different velocities cause electrons to move closer together.
Density modulation: the resulting bunching produces variations in electron concentration.

This is why density modulation is considered a later stage of the electron-beam modulation process. The electron beam must first acquire velocity differences before those differences can develop into spatial bunches.

How Electron Bunching Develops During Propagation

After velocity modulation, the electron beam enters a propagation region in which the electrons continue moving with their modified velocities. Suppose a faster electron is located behind a slower electron. Since the faster electron travels a greater distance in the same amount of time, the separation between them gradually decreases.

The same process occurs among many electrons in the beam. Electrons that have higher velocities move toward slower electrons ahead of them, while the spacing between other electrons can increase. Consequently, the initially more uniform electron distribution gradually changes into alternating regions of high and low electron concentration.

The high-density regions correspond to electron bunches. The bunches become increasingly well defined as the electrons propagate through the appropriate distance. The formation of these bunches therefore represents the conversion of a velocity variation into a spatial density variation.

The process can be viewed in three stages:

The RF electric field produces different electron velocities.
The velocity differences cause faster electrons to approach slower electrons.
The electrons become concentrated into groups, producing density modulation.

Velocity Variation Versus Density Variation

Although velocity modulation and density modulation are related, they describe different physical quantities. Velocity modulation describes how the speed of individual electrons varies as a result of their interaction with the RF field. Density modulation describes how the number of electrons per unit volume or along a section of the beam varies as the electrons propagate.

Immediately after the RF interaction, velocity variation is the dominant effect. The electrons have acquired different velocities according to the RF phase. As the beam travels farther, these velocity differences produce changes in electron spacing and eventually form electron bunches. At that stage, the spatial distribution of the beam has become modulated.

Feature	Velocity Modulation	Density Modulation
Physical quantity	Electron velocity	Electron concentration or density
Origin	Direct interaction with an RF electric field	Development of velocity differences during propagation
Order	First stage	Later stage
Electron velocity	Becomes non-uniform	Different velocities already exist
Electron spacing	Initially approximately unchanged	Becomes non-uniform
Main result	Faster and slower electrons are produced	Electron bunches and high-density regions are produced
Role in microwave devices	Provides the initial electron-beam modulation	Provides concentrated electron groups for RF interaction

Complete Electron-Beam Modulation Process

The complete electron-beam modulation process can be understood by following the electron beam from its initial interaction with the RF field. Initially, the electrons travel with an approximately common average velocity. The beam then enters an RF interaction region where the electric field varies periodically with time. Because different electrons encounter different RF phases, they experience different accelerating or retarding forces.

As a result, the electron velocities become different. Some electrons move faster than the average velocity, while others move more slowly. This is the velocity-modulated stage. At this point, the electrons have different velocities, but the electron distribution has not necessarily formed well-defined bunches.

The velocity-modulated beam then travels through a propagation or drift region. During this time, faster electrons approach slower electrons ahead of them. The electron spacing therefore changes continuously. Eventually, electrons become concentrated into groups, producing electron bunches and a corresponding density modulation.

The complete process can therefore be written as

\[ \text{RF field}\rightarrow\text{velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation} \]

Role of Transit Time in Electron Bunch Formation

Transit time plays an important role in the development of electron bunches because the velocity-modulated electrons require a finite amount of time to travel through the device. The electrons cannot form significant bunches immediately after their velocities are changed. They must propagate through a certain distance so that the faster electrons can approach the slower electrons ahead of them.

For an electron travelling through a region of length \(L\) with velocity \(v\), the transit time is

\[ t_r=\frac{L}{v} \]

This transit time determines how long the velocity differences can act on the relative positions of the electrons. A longer propagation distance provides more opportunity for faster electrons to approach slower electrons. However, the optimum distance is determined by the required phase relationship and operating conditions of the particular microwave device.

The RF period is given by

\[ T=\frac{1}{f} \]

Therefore, the relationship between electron transit time and RF period is important when designing the interaction and drift regions. The electron beam must travel through the appropriate distance so that the desired bunching occurs at the desired RF phase.

RF Energy Exchange With Electron Bunches

Once electron bunches have formed, they can interact strongly with an RF electromagnetic field. The phase of the RF field at the location of the electron bunch determines whether the electrons gain energy from the field or transfer kinetic energy to the field.

For microwave generation or amplification, the operating conditions are selected so that the electron bunches interact with the RF field in a manner that allows energy from the electron beam to be transferred to the electromagnetic field. The RF structure can then support an increasing microwave signal under the appropriate conditions.

Thus, density modulation provides an important link between electron-beam motion and RF energy exchange. The RF field first produces velocity modulation, the velocity differences produce bunching, and the resulting electron bunches interact with an RF field to facilitate energy transfer.

\[ \text{Density-modulated beam}\rightarrow\text{RF interaction}\rightarrow\text{electron-field energy exchange} \]

The exact direction and efficiency of energy transfer depend on the phase relationship between the electron bunches and the RF field. This phase relationship is carefully controlled in microwave electron-beam devices.

Application of Velocity and Density Modulation in Klystrons

The relationship between velocity modulation and density modulation is particularly important in the operation of a klystron. A klystron uses an electron beam and RF cavities to control the motion of electrons and exchange energy between the beam and microwave electromagnetic fields.

In a basic klystron process, the electron beam first passes through an RF cavity where the RF electric field produces velocity modulation. Electrons are accelerated or retarded depending on their phase relative to the RF field. The velocity-modulated beam then enters a drift space, where the faster electrons gradually approach the slower electrons and form electron bunches.

The bunched electron beam subsequently interacts with another RF cavity. If the phase relationship is appropriate, the electron bunches transfer part of their kinetic energy to the RF field in the cavity. This allows the microwave signal to be amplified in a klystron amplifier.

Therefore, the basic klystron mechanism can be represented as

\[ \text{RF cavity}\rightarrow\text{velocity modulation}\rightarrow\text{drift space}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\rightarrow\text{output RF interaction} \]

This sequence is fundamental to understanding why the velocity-modulation and density-modulation concepts are introduced before studying the detailed construction and operation of klystrons.

Importance of Velocity and Density Modulation in Microwave Generators

Velocity and density modulation provide a fundamental method for controlling an electron beam at microwave frequencies. The RF field initially changes the energy and velocity of the electrons, while the subsequent propagation of the beam converts this velocity variation into a spatial density variation. The resulting electron bunches can then interact with RF structures to exchange energy with the electromagnetic field.

These concepts are especially important in microwave vacuum devices because the operating frequency is high enough that the timing of electron motion relative to the RF field becomes critical. The electron transit time, interaction-region dimensions, drift-space length, electron velocity, and RF phase must all be considered to obtain the desired electron-beam behavior.

Understanding these two forms of modulation therefore provides the physical foundation for studying microwave generators based on electron-beam interaction. In particular, the concepts directly prepare the reader for the operation of klystrons, where velocity modulation, electron bunching, density modulation, and RF energy exchange occur as connected stages of the microwave-generation or amplification process.

Complete Relationship Between Velocity and Density Modulation

The relationship between velocity modulation and density modulation can be understood as a continuous chain of physical events rather than as two independent effects. The process starts with an RF electric field acting on the electron beam. The field changes the velocity of individual electrons according to their RF phase. This creates faster and slower electrons within the beam.

The velocity differences then act during the subsequent propagation of the electron beam. Faster electrons approach slower electrons ahead of them, reducing the spacing between certain groups of electrons. As the electrons become concentrated, electron bunches develop. The formation of these bunches produces a periodic variation in electron density along the beam.

Finally, the density-modulated electron beam interacts with an RF electromagnetic field. Under suitable phase conditions, the electron bunches can transfer kinetic energy to the RF field. This provides the mechanism through which electron-beam devices can generate or amplify microwave energy.

\[ \boxed{\text{RF field}\rightarrow\text{velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\rightarrow\text{RF energy interaction}} \]

Key Points of Velocity and Density Modulation

Velocity modulation occurs first because the RF electric field directly changes the velocities of the electrons.
The RF field accelerates some electrons and retards others according to their phase.
The resulting beam contains electrons with different velocities.
During propagation, faster electrons approach slower electrons ahead of them.
The changing electron spacing produces electron bunches.
The formation of electron bunches produces density modulation.
Velocity modulation describes variation in electron velocity, while density modulation describes variation in electron concentration.
The drift space provides the distance and time required for velocity differences to develop into electron bunches.
Transit time is important because the electrons require a finite time to travel through the interaction and drift regions.
Density-modulated electron bunches can interact strongly with an RF field and participate in RF energy exchange.
The relationship between the two concepts is \(\displaystyle \text{velocity modulation}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\).
In klystrons, velocity modulation and density modulation form important stages of electron-beam interaction with RF cavities.
The complete microwave electron-beam process is \(\displaystyle \text{RF field}\rightarrow\text{velocity modulation}\rightarrow\text{different electron velocities}\rightarrow\text{electron bunching}\rightarrow\text{density modulation}\rightarrow\text{RF energy interaction}\).

Difference Between Velocity Modulation and Density Modulation

Basis	Velocity Modulation	Density Modulation
Definition	Velocity modulation is the variation in the velocity of electrons in an electron beam.	Density modulation is the variation in the concentration or density of electrons along the electron beam.
Order of occurrence	It occurs first.	It develops after velocity modulation.
Main cause	It is caused by the interaction of the electron beam with an RF electric field.	It is caused by the different velocities of electrons during their subsequent propagation.
Electron velocity	Electrons acquire different velocities depending on the phase of the RF field.	The velocity differences produced earlier cause electrons to move relative to one another.
Electron spacing	The electron spacing may initially remain approximately unchanged immediately after velocity modulation.	The electron spacing becomes non-uniform as faster electrons approach slower electrons.
Electron bunching	It provides the velocity differences required for bunch formation.	It results in the formation of concentrated groups called electron bunches.
Electron density	The electron density is not necessarily significantly modulated immediately after the RF interaction.	The electron density varies along the beam, producing high-density and low-density regions.
Propagation requirement	It is produced during the interaction of the electron beam with the RF field.	It develops as the velocity-modulated electrons propagate through a drift region.
Role of drift space	A drift space is not required to initially produce the velocity variation.	The drift space provides the distance and time required for electron bunching to develop.
Physical quantity being modulated	Electron velocity or kinetic energy.	Electron concentration or beam density.
Physical process	RF electric field accelerates or retards electrons.	Faster electrons catch up with slower electrons and form bunches.
Result	A velocity-modulated electron beam containing faster and slower electrons.	A density-modulated electron beam containing regions of high and low electron concentration.
Importance in microwave generators	Provides the initial control of electron motion by the RF field.	Produces electron bunches that can interact effectively with an RF field for energy exchange.
Relation between them	Velocity modulation is the initial stage that produces different electron velocities.	Density modulation is the later result of those velocity differences producing electron bunching.

The relationship between the two can be expressed in a simple sequence: the RF electric field first produces velocity modulation. The resulting difference in electron velocities causes the electrons to change their relative positions during propagation. Faster electrons approach slower electrons, producing electron bunching. The resulting variation in electron concentration is called density modulation.

\[ \text{RF field}\rightarrow\text{Velocity modulation}\rightarrow\text{Different electron velocities}\rightarrow\text{Electron bunching}\rightarrow\text{Density modulation}\rightarrow\text{RF energy interaction} \]
