Precision Dielectric Rotary Phase Shifter
Construction and Basic Working Principle of a Precision Dielectric Rotary Phase Shifter
A Precision Dielectric Rotary Phase Shifter is a mechanically controlled microwave device used to produce an accurately adjustable phase shift in a microwave signal. Unlike a fixed phase shifter, the amount of phase change can be varied by mechanically rotating a dielectric section inside a waveguide. The device uses the interaction between the electromagnetic field and carefully designed dielectric plates to control the phase of the transmitted wave. A precision rotary arrangement allows the phase shift to be adjusted continuously and calibrated according to the required rotation angle.

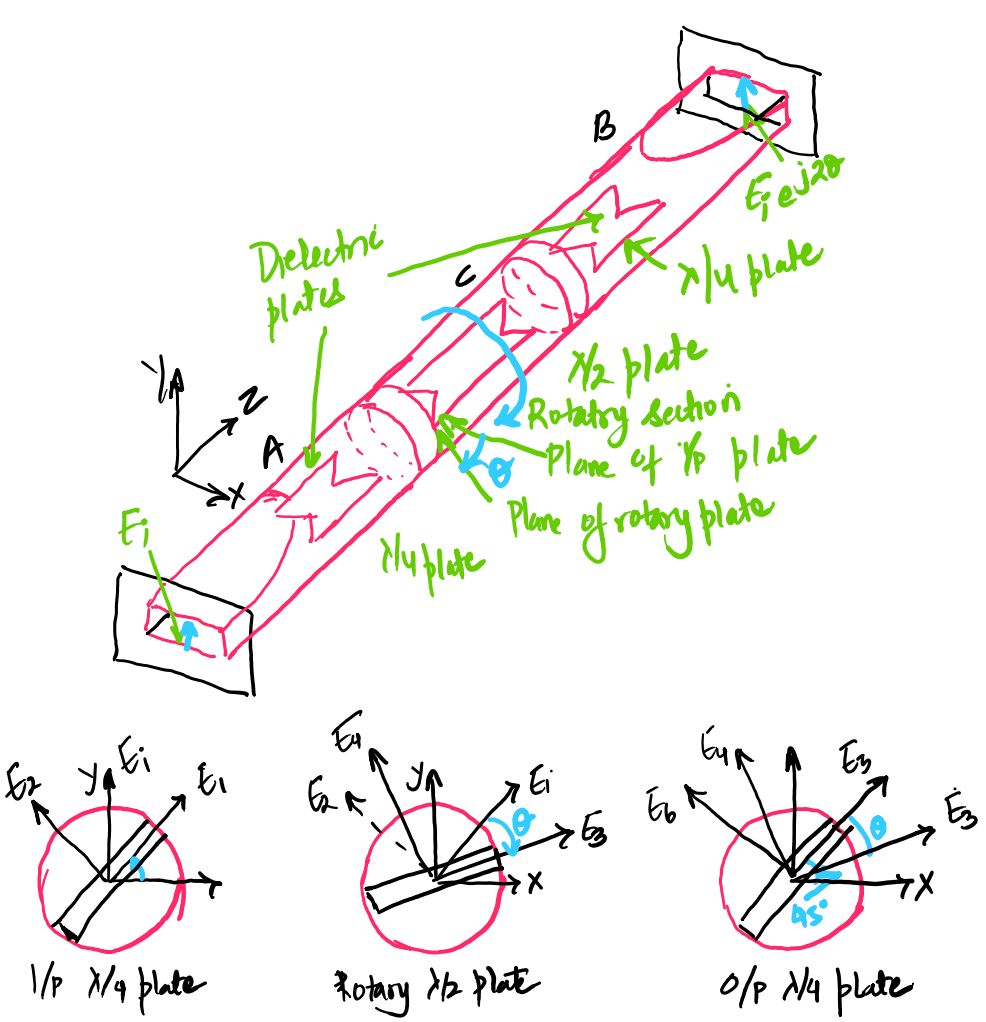

The basic structure consists of three dielectric-loaded sections. The central section is a rotatable half-wave dielectric section, while the two outer sections are fixed quarter-wave dielectric sections. These sections are arranged between the input and output waveguide transitions. The quarter-wave sections perform the required polarization transformation, while the rotatable half-wave section provides the variable phase shift. The combination of these sections allows the microwave signal to enter and leave the device with the same linear polarization while acquiring a controlled phase change.
Construction of the Precision Dielectric Rotary Phase Shifter
A precision dielectric rotary phase shifter uses a section of circular waveguide containing a lossless dielectric plate. The central circular-waveguide section, denoted by C, contains a dielectric plate having a length of λg/2. This section is therefore called the half-wave section. The half-wave section is mounted so that it can be rotated precisely through an angle θ, and it may be rotated over a complete 360° range.
The central half-wave section is positioned between two circular-to-rectangular waveguide transition sections, denoted by A and B. Each transition section contains a lossless dielectric plate having a length of λg/4. These are called quarter-wave sections. The quarter-wave dielectric plates are fixed in position and are oriented at an angle of 45° with respect to the broad wall of the rectangular waveguide input and output ports.
The three-section arrangement is therefore designed so that the input quarter-wave section establishes the required polarization state, the central rotatable half-wave section changes the phase according to its mechanical orientation, and the output quarter-wave section converts the field back into the required output polarization. This arrangement is responsible for the precision phase-control capability of the device.
Quarter-Wave and Half-Wave Dielectric Sections
The dielectric plates used in the rotary phase shifter have specific electrical lengths that determine their function. The dielectric plates in the input and output sections each have an electrical length corresponding to a quarter wavelength, represented by λg/4. These quarter-wave sections introduce the required differential phase relationship between two perpendicular field components. The central dielectric plate has an electrical length corresponding to a half wavelength, represented by λg/2, and produces the phase transformation required for rotary phase control.
The distinction between the quarter-wave and half-wave sections is therefore important. The quarter-wave sections are responsible primarily for converting between linear and circular polarization, whereas the half-wave section is responsible for modifying the phase of the circularly polarized field according to its orientation. The complete phase-shifting operation is obtained only when these sections work together.
Orientation of the Quarter-Wave Dielectric Plates
The dielectric plates in the input and output quarter-wave sections are oriented at 45° with respect to the broad wall of the rectangular waveguide. This orientation is necessary because the incident electric field must be resolved into two mutually perpendicular components before the quarter-wave phase transformation can occur.
When the incident field reaches the first quarter-wave section, its electric field is not aligned completely parallel or perpendicular to the dielectric plate. Instead, the 45° orientation causes the field to divide into two components having equal magnitudes. These two components subsequently experience different phase velocities while travelling through the dielectric-loaded section. The resulting differential phase shift between the components is 90°, which is the condition required for circular polarization.
Rotation of the Half-Wave Section
The central half-wave dielectric section is the movable part of the precision rotary phase shifter. It can be rotated through an angle θ with respect to the fixed quarter-wave sections. Changing this orientation changes the way the two components of the electromagnetic field interact with the dielectric plate. Consequently, the phase relationship of the field at the output changes with the mechanical rotation angle.
The important feature of the rotary arrangement is that the phase change is twice the mechanical rotation angle. Thus, if the half-wave dielectric plate is rotated through an angle θ, the variable phase shift produced by the device is
\[ \Delta\phi=2\theta \]
This relationship provides a simple means of controlling the microwave phase. By precisely controlling and calibrating the rotation angle of the half-wave section, a desired phase shift can be obtained.
360° Rotation of the Half-Wave Plate
The central half-wave section is designed to rotate precisely through 360°. The ability to rotate the dielectric plate over a complete revolution allows the phase shifter to provide a continuously adjustable phase relationship. Since the phase variation is related to twice the mechanical rotation angle, the rotation mechanism can be calibrated so that a particular angular position corresponds to a specific phase shift.
Precision mechanical construction is important because any error in the rotation angle produces a corresponding error in the phase shift. Therefore, the rotating section must be capable of accurate and repeatable positioning. This mechanical precision is one of the defining characteristics of a precision dielectric rotary phase shifter.
TE10 to TE11 Mode Conversion
The microwave signal enters the device through a rectangular waveguide in the dominant TE10 mode. At the circular-to-rectangular transition, the electromagnetic field is converted so that it propagates as a TE11 mode in the circular waveguide section. The TE11 mode provides the field structure required for the polarization-based operation of the dielectric phase shifter.
The incident TE10 wave therefore does not simply propagate unchanged through the entire device. The transition into the circular waveguide produces the required TE11 field, which can then be resolved into two transverse components relative to the dielectric plates. These components undergo different phase changes as they propagate through the quarter-wave and half-wave dielectric sections.
Dielectric Plates and Electromagnetic Field Interaction
The dielectric plates are made from low-loss dielectric material so that the phase-shifting operation can be achieved without introducing significant attenuation. When the electromagnetic field interacts with the dielectric, the propagation characteristics of the corresponding field component are modified. In particular, the phase velocity and propagation constant are affected by the dielectric material.
The dielectric plates are positioned and shaped so that the required field components experience controlled phase changes. The quarter-wave sections are designed to create a 90° differential phase relationship, while the central half-wave section provides a 180° differential phase relationship. These controlled phase differences allow the polarization state of the microwave field to be transformed and ultimately produce the required output phase shift.
Tapered Ends of the Dielectric Plates
The dielectric plates are tapered at both ends over a length of approximately one-quarter wavelength. The taper provides a gradual transition between the dielectric-loaded region and the surrounding waveguide region. Without an appropriate transition, the abrupt change in electromagnetic properties could produce significant reflections at the dielectric boundaries.
By gradually changing the interaction between the electromagnetic field and the dielectric material, the tapered ends reduce the discontinuity encountered by the propagating wave. This helps reduce unwanted reflections and improves the transmission characteristics of the phase shifter.
Reduction of Reflections
Reflection reduction is particularly important in a precision phase shifter because unwanted reflected waves can disturb the phase relationship of the signal and reduce the accuracy of phase control. The tapered dielectric ends help minimize these reflections by providing a smoother electromagnetic transition between different regions of the waveguide.
The use of low-loss dielectric material together with properly tapered dielectric ends allows the phase shifter to provide the required phase transformation while maintaining good transmission characteristics. This design also helps ensure that the input and output ports remain suitably matched for practical microwave operation.
Matching of the Input and Output Ports
The two ports of the precision dielectric rotary phase shifter are designed to be matched so that most of the incident microwave power is transmitted through the device rather than reflected back toward the source. Matching is supported by the tapered dielectric structures and the carefully designed waveguide transitions.
Good port matching is important because the primary purpose of the device is to change phase rather than to reflect or significantly attenuate the microwave signal. Therefore, the phase shifter is designed so that the electromagnetic wave experiences the required phase transformation while maintaining low reflection and low insertion loss.
Basic Operating Principle
The operation of the precision dielectric rotary phase shifter can be understood as a sequence of field and polarization transformations. First, the incident TE10 wave enters through the rectangular waveguide and is converted into a TE11 wave in the circular waveguide section. The electric field of this TE11 wave is then resolved into two perpendicular components by the 45° oriented dielectric plate in the input quarter-wave section.
The two components propagate through the quarter-wave dielectric section and acquire a differential phase shift of 90°. Because the components have equal magnitude and are perpendicular to each other, this phase relationship converts the linearly polarized field into a circularly polarized field. The circularly polarized field then enters the central half-wave dielectric section, which is rotated through an angle θ.
As the half-wave section is rotated, the field components experience a phase transformation determined by the orientation of the dielectric plate. The resulting field then enters the output quarter-wave section, where the polarization transformation is reversed. The circularly polarized field is converted back into a linearly polarized TE11 wave, which is then transformed back into the appropriate rectangular-waveguide mode at the output.
Role of the Three Sections in Phase Shifting
The complete operation of the precision dielectric rotary phase shifter depends on the coordinated action of its three dielectric sections. The input quarter-wave section A converts the incident linearly polarized field into circular polarization by producing a 90° differential phase shift between two perpendicular field components. The central half-wave section C is the rotatable element and changes the phase relationship of the circularly polarized field according to its mechanical rotation angle. The output quarter-wave section B converts the resulting field back into a linearly polarized wave.
Therefore, the quarter-wave sections establish and restore the required polarization state, while the rotating half-wave section provides the variable phase control. The fixed propagation phase associated with the physical structure remains constant at a given operating frequency, whereas the phase contribution associated with the rotation of the half-wave section can be varied continuously.
Fundamental Phase-Control Relationship
The central principle of the precision dielectric rotary phase shifter is that the variable phase shift is twice the mechanical rotation angle of the half-wave dielectric plate. Therefore, when the half-wave section is rotated through an angle θ, the variable phase shift is
\[ \Delta\phi=2\theta \]
This relationship makes the device particularly suitable for precision microwave phase control. By accurately measuring or controlling the rotation angle, the corresponding phase shift can be determined directly. The detailed field derivation of this relationship follows from the decomposition of the TE11 field, the 90° phase transformation in the quarter-wave sections, the 180° phase transformation in the half-wave section, and the final recombination of the field components.
Field Decomposition in the Precision Dielectric Rotary Phase Shifter
The operation of a Precision Dielectric Rotary Phase Shifter is based on the controlled transformation of the polarization of the electromagnetic field as it passes through the quarter-wave and half-wave dielectric sections. The input signal is a linearly polarized TE10 wave in the rectangular waveguide. At the rectangular-to-circular waveguide transition, this field is converted into the corresponding TE11 mode in the circular waveguide. The TE11 field then interacts with the dielectric plates, which introduce different phase delays for field components having different polarization directions.
The input quarter-wave dielectric plate is oriented at 45° with respect to the broad wall of the rectangular waveguide. Therefore, the incident TE11 electric field cannot be considered as a single component relative to the dielectric plate. Instead, it is resolved into two mutually perpendicular transverse components. One component is polarized parallel to the dielectric plate, while the other component is polarized perpendicular to it. The quarter-wave plate is designed so that these two components experience a differential phase shift of 90°, which is the fundamental condition required for conversion between linear and circular polarization.
Resolution of the Incident TE11 Field
Let the incident electric field of the TE11 mode be represented by Ei. Since the input quarter-wave dielectric plate is positioned at 45° to the reference polarization direction, the incident field can be resolved into two perpendicular components. Let these components be represented by E1 and E2, where E1 is parallel to the dielectric plate and E2 is perpendicular to the dielectric plate.
The two components have equal magnitudes because the incident field makes an angle of 45° with the axes of resolution. Therefore, before propagation through the quarter-wave section, the two components are
\[ E_1=E_i\cos45^\circ=\frac{E_i}{\sqrt{2}}=E_0 \]
and
\[ E_2=E_i\sin45^\circ=\frac{E_i}{\sqrt{2}}=E_0 \]
where
\[ E_0=\frac{E_i}{\sqrt{2}} \]
Thus, the incident linearly polarized field is resolved into two equal orthogonal components. These components propagate through the quarter-wave dielectric section and acquire different phase shifts because their propagation constants are different.
Propagation Through the Input Quarter-Wave Section
The dielectric plate produces different propagation constants for the two orthogonal field components. Let the propagation constants corresponding to the two polarization components be β1 and β2. After propagation through a length l, the two field components acquire phase factors determined by their respective propagation constants.
The component parallel to the dielectric plate can therefore be written as
\[ E_1=E_0e^{-j\beta_1l} \]
Similarly, the perpendicular component is
\[ E_2=E_0e^{-j\beta_2l} \]
The length of the quarter-wave dielectric plate is selected so that the difference between the phase shifts experienced by these two components is 90°. Therefore, the design condition is
\[ (\beta_1-\beta_2)l=90^\circ=\frac{\pi}{2} \]
This differential phase relationship is the defining characteristic of the quarter-wave section. Although the two components have equal magnitudes, they are no longer in phase after propagation through the dielectric plate. One component leads or lags the other by 90°.
Conversion of Linear Polarization to Circular Polarization
After passing through the input quarter-wave dielectric plate, the two orthogonal electric-field components have equal magnitudes and a phase difference of 90°. These are precisely the conditions required to produce a circularly polarized wave. Consequently, the quarter-wave section converts the incident linearly polarized TE11 wave into a circularly polarized wave.
The resulting components can be expressed by selecting one component as the phase reference. Thus, the field components can be written in the form
\[ E_1=E_0e^{-j\beta_1l} \]
and
\[ E_2=E_0e^{-j\beta_1l}e^{-j\pi/2} \]
Since
\[ e^{-j\pi/2}=-j \]
the second component is in quadrature with the first component. Therefore, the two equal-amplitude orthogonal components combine to form a circularly polarized TE11 field.
Function of the Half-Wave Dielectric Section
The circularly polarized field produced by the input quarter-wave section enters the central circular waveguide section containing the half-wave dielectric plate. This section is the main rotating element of the precision rotary phase shifter. The half-wave section has a differential phase shift of 180° between its two orthogonal field components.
The half-wave dielectric section is mounted so that it can be rotated through an angle θ with respect to the fixed quarter-wave sections. The rotation changes the orientation of the two principal axes of the half-wave plate relative to the polarization components entering it. This controlled rotation is responsible for producing the variable phase shift at the output.
The field components entering the half-wave section are resolved along the axes of the rotated half-wave plate. If the half-wave plate is rotated through an angle θ, the incoming components can be resolved using the appropriate trigonometric transformation. The components along the principal axes of the half-wave plate therefore become functions of both the original field components and the rotation angle.
Field Components Through the Rotated Half-Wave Section
Let the two field components entering the half-wave section be E1 and E2. After resolution with respect to the rotated axes of the half-wave plate, the components emerging from the half-wave section can be represented as
\[ E_3=(E_1\cos\theta-E_2\sin\theta)e^{-j\beta_1l} \]
and
\[ E_4=(E_2\cos\theta+E_1\sin\theta)e^{-j\beta_2l} \]
where the two terms represent the field components along the principal polarization directions of the half-wave dielectric section. Because the half-wave section introduces a differential phase shift of 180°, the two emerging components acquire a relative phase reversal.
For the half-wave section, the design condition is
\[ (\beta_1-\beta_2)l=\pi \]
or equivalently, the differential phase introduced by this section is 180°. This phase relationship causes the polarization state of the wave to be transformed as it passes through the rotating half-wave section.
Effect of Rotating the Half-Wave Plate
The most important feature of the precision rotary phase shifter is that the central half-wave dielectric plate can be rotated while the input and output quarter-wave plates remain fixed. When the half-wave plate is rotated through an angle θ, the phase relationship of the field components emerging from the section changes according to the orientation of the plate.
The rotation does not simply introduce a phase shift equal to θ. Instead, because the electromagnetic field is resolved into two orthogonal components by the half-wave plate, the resulting phase variation is twice the mechanical rotation angle. Thus, if the half-wave plate is rotated through an angle θ, the variable phase contribution at the output becomes
\[ \Delta\phi=2\theta \]
This is the fundamental operating principle of the precision dielectric rotary phase shifter. A precisely controlled mechanical rotation therefore produces a precisely controlled microwave phase shift.
Recombination Through the Output Quarter-Wave Section
After passing through the rotating half-wave section, the field enters the second quarter-wave dielectric section. This output quarter-wave section is fixed and is oriented in the same manner as the input quarter-wave section. Its function is to transform the circularly or elliptically transformed field components back into a linearly polarized TE11 wave suitable for conversion back into the rectangular waveguide mode.
The field components emerging from the half-wave section are again resolved with respect to the axes of the output quarter-wave plate. The output components can be represented as
\[ E_5=(E_3\cos\theta+E_4\sin\theta)e^{-j\beta_1l} \]
and
\[ E_6=(E_4\cos\theta-E_3\sin\theta)e^{-j\beta_2l} \]
Because the output quarter-wave section introduces the required 90° differential phase relationship, the two components recombine to form a linearly polarized TE11 field. The resulting field has the same polarization direction as the incident field but has acquired an additional phase shift determined by the rotation of the central half-wave section.
Resultant Output Field
After combining the two output components, the resultant electric field can be expressed in the form
\[ E_{\text{out}}=E_i e^{-j2\theta}e^{-j4\beta_1l} \]
The term e-j2θ represents the variable phase contribution produced by rotating the half-wave dielectric plate, while the remaining phase term represents the fixed phase contribution associated with propagation through the dielectric sections.
Therefore, the phase change introduced by the rotary mechanism is
\[ \Delta\phi=2\theta \]
where θ is the mechanical rotation angle of the half-wave dielectric plate. Since the fixed phase contribution is determined by the physical structure and operating frequency, the desired variable phase shift can be obtained simply by accurately controlling the rotation angle.
Principle of Precision Phase Control
The precision dielectric rotary phase shifter therefore converts mechanical rotation into controlled microwave phase shift. The two fixed quarter-wave sections perform polarization conversion, while the central half-wave section provides the variable phase-control mechanism. When the central section is rotated, the polarization axes seen by the circularly polarized field are changed, resulting in a phase variation that is twice the physical rotation angle.
At a given operating frequency and fixed waveguide structure, the phase contribution associated with the fixed dielectric sections remains constant. Consequently, the variable phase shift is controlled primarily by the rotation angle of the half-wave plate. The relationship can therefore be summarized as
\[ \boxed{\Delta\phi=2\theta} \]
This relationship makes it possible to calibrate the rotary mechanism directly in terms of phase shift. A known mechanical rotation corresponds to a known electrical phase change, allowing accurate and repeatable adjustment of the microwave signal phase.
Half-Wave Rotation, Output Transformation and Phase Shift
The two equal-magnitude orthogonal field components produced by the input quarter-wave section now enter the central half-wave dielectric section C. This section is the rotating element of the precision dielectric rotary phase shifter. Unlike the input and output quarter-wave sections, which remain fixed, the half-wave dielectric plate can be rotated through an angle θ. The rotation of this section changes the orientation of the dielectric plate with respect to the incoming field components and produces the required variable phase shift.
The half-wave section is designed to introduce a differential phase shift of 180° between the two orthogonal field components. Therefore, the electromagnetic field entering this section experiences both a polarization-axis rotation and a differential phase delay. The combination of these two effects is responsible for the phase-shifting action of the precision dielectric rotary phase shifter.
Rotation of the Half-Wave Section
Let the half-wave dielectric plate be rotated through an angle θ with respect to the fixed quarter-wave sections. The field components E1 and E2 entering the half-wave section are resolved along the axes of the rotated dielectric plate. Because the plate is rotated, neither E1 nor E2 acts independently along the principal axes of the half-wave section.
The components along the rotated axes are obtained using the usual resolution of vector components. The component along one principal axis contains contributions from both E1 and E2, while the component along the perpendicular axis also contains contributions from both fields. Thus, the rotation angle θ directly determines how the incident field is distributed between the two principal directions of the half-wave plate.
Derivation of E3 and E4
After resolving the incoming field components with respect to the rotated half-wave plate and allowing them to propagate through the half-wave dielectric section, the emerging field components can be written as
\[ E_3=(E_1\cos\theta-E_2\sin\theta)e^{-j\beta_1l} \]
and
\[ E_4=(E_2\cos\theta+E_1\sin\theta)e^{-j\beta_2l} \]
where β1 and β2 are the propagation constants corresponding to the two principal polarization directions of the dielectric section, and l is the length of the half-wave dielectric section. The exponential terms represent the phase accumulated by the respective field components during propagation through the dielectric plate.
The half-wave section is specifically designed so that the two components acquire a differential phase shift of 180°. Therefore, the design condition for the half-wave section is
\[ (\beta_1-\beta_2)l=\pi \]
This condition means that the phase difference between the two orthogonal components after propagation through the half-wave section is one-half of a complete cycle. The 180° differential phase shift changes the relative phase relationship between the two field components and is essential for the subsequent polarization transformation at the output quarter-wave section.
Relation Between β1, β2 and Half-Wave Length
For the half-wave section, the dielectric plate length is selected so that the difference between the phase accumulated by the two orthogonal components is equal to π. Hence,
\[ (\beta_1-\beta_2)l=\pi \]
or
\[ \beta_1l-\beta_2l=\pi \]
This relationship allows the phase terms associated with β2 to be expressed in terms of β1 when simplifying the output field equations. From the above equation,
\[ \beta_2l=\beta_1l-\pi \]
and therefore,
\[ e^{-j\beta_2l}=e^{-j\beta_1l}e^{j\pi} \]
Since
\[ e^{j\pi}=-1 \]
the second field component acquires the required phase reversal relative to the first component. This 180° phase relationship is the characteristic property of the half-wave dielectric section.
Field Transformation Through the Half-Wave Section
The half-wave section therefore performs two simultaneous functions. First, it resolves the incoming circularly polarized field according to the rotated orientation of the dielectric plate. Second, it introduces a 180° differential phase shift between the resulting orthogonal components. Because the half-wave plate is rotated through θ, the orientation of the emerging field components is also changed with respect to the fixed output quarter-wave plate.
The important point is that the phase variation produced by the half-wave section depends on the rotation angle θ. The phase change is not simply equal to the mechanical rotation angle. Due to the transformation of the two orthogonal components through the half-wave section, the resulting variable phase contribution becomes twice the mechanical rotation angle.
Propagation Through the Output Quarter-Wave Section
The two field components E3 and E4 emerging from the half-wave section next enter the fixed output quarter-wave section B. This section performs the reverse polarization transformation of the input quarter-wave section. The field components are again resolved with respect to the axes of the quarter-wave plate and propagate through the dielectric section with their respective propagation constants.
The components at the output of the quarter-wave section can be written as
\[ E_5=(E_3\cos\theta+E_4\sin\theta)e^{-j\beta_1l} \]
and
\[ E_6=(E_4\cos\theta-E_3\sin\theta)e^{-j\beta_2l} \]
Here E5 and E6 represent the two orthogonal field components after propagation through the output quarter-wave section. The quarter-wave section again introduces a 90° differential phase relationship between the two components.
Conversion of Circular Polarization Back to Linear Polarization
The input quarter-wave section converted the incident linearly polarized TE11 wave into a circularly polarized wave. The half-wave section then modified the phase and orientation of its two orthogonal components. The output quarter-wave section now performs the reverse operation by converting the transformed field back into a linearly polarized wave.
At the output of the quarter-wave section, the two components E5 and E6 have equal magnitudes and the appropriate phase relationship required for their combination into a linearly polarized TE11 field. The resultant field has the same polarization direction as the original incident field, but its phase has been changed by the rotary phase-shifting mechanism.
Derivation of the Output Field
Using the relationships between the propagation constants and the quarter-wave and half-wave sections, the two output components can be simplified. The field components at the output become equal in magnitude and phase, apart from the common phase factor introduced by the dielectric sections and the variable phase contribution associated with the rotation angle.
The resultant output electric field is obtained by adding the two orthogonal components. Since
\[ E_0=\frac{E_i}{\sqrt{2}} \]
the combination of the two equal components restores the original field magnitude. The resulting output field can therefore be expressed as
\[ E_{\text{out}}=E_i e^{-j2\theta}e^{-j4\beta_1l} \]
or equivalently,
\[ E_{\text{out}}=E_i e^{-j(2\theta+4\beta_1l)} \]
This expression contains two distinct contributions to the phase. The term 2θ depends on the mechanical rotation of the half-wave plate and therefore represents the variable phase component. The term 4β1l depends on the propagation through the fixed dielectric sections and remains fixed for a given frequency and physical structure.
Total Phase Change
From the output-field expression
\[ E_{\text{out}}=E_i e^{-j(2\theta+4\beta_1l)} \]
the total phase change introduced between the input and output fields is
\[ \phi=2\theta+4\beta_1l \]
The first term varies with the rotation angle of the half-wave section, whereas the second term is fixed when the operating frequency, dielectric properties, and physical dimensions of the phase shifter remain unchanged.
Variable Phase Component
For a fixed operating frequency and fixed phase-shifter structure, the quantity 4β1l is constant. Therefore, it does not contribute to the variable phase adjustment. The variable phase component is determined entirely by the rotation angle of the central half-wave dielectric plate.
Hence, the variable phase shift is
\[ \Delta\phi=2\theta \]
This is the fundamental result of the precision dielectric rotary phase shifter. It shows that a mechanical rotation of the half-wave dielectric plate through an angle θ produces an electrical phase shift equal to 2θ.
Why the Phase Shift is Twice the Rotation Angle
The factor of two arises from the polarization transformation produced by the half-wave section. The incident circularly polarized field is resolved into two orthogonal components relative to the rotated half-wave plate. The 180° differential phase shift between these components effectively reverses the orientation of the polarization components. When the resulting field is subsequently transformed back into a linearly polarized wave by the output quarter-wave section, the phase variation appears as twice the physical rotation angle of the half-wave plate.
Therefore, the phase shift is not simply θ but
\[ \boxed{\Delta\phi=2\theta} \]
This relationship is what makes the rotary arrangement suitable for precision phase control. A precisely known mechanical rotation can be directly converted into a predictable electrical phase change.
Calibration of the Rotation Angle
Since the variable phase shift is directly related to the rotation angle, the rotary mechanism can be calibrated to provide the required phase shift. For a desired phase change Δφ, the required rotation angle is obtained from
\[ \theta=\frac{\Delta\phi}{2} \]
For example, the relationship indicates that a mechanical rotation of 45° corresponds to a variable phase shift of 90°, while a mechanical rotation of 90° corresponds to a variable phase shift of 180°. Thus, accurate control of the half-wave plate rotation provides accurate and repeatable microwave phase control.
Final Working Principle
The complete operation of the Precision Dielectric Rotary Phase Shifter can therefore be understood as a sequence of polarization transformations. The input quarter-wave section converts the linearly polarized TE11 field into a circularly polarized field by introducing a 90° differential phase shift between two equal orthogonal components. The rotatable half-wave section then introduces a 180° differential phase shift while its rotation through θ changes the orientation of the field components. Finally, the output quarter-wave section converts the transformed field back into a linearly polarized TE11 wave.
The resulting output field is
\[ E_{\text{out}}=E_i e^{-j(2\theta+4\beta_1l)} \]
and the total phase change is
\[ \phi=2\theta+4\beta_1l \]
Since the term 4β1l is fixed for a given frequency and structure, the controllable phase shift is
\[ \boxed{\Delta\phi=2\theta} \]
Thus, the precision dielectric rotary phase shifter achieves accurate microwave phase control by precisely rotating the central half-wave dielectric plate. The electrical phase shift is twice the mechanical rotation angle, providing a simple and predictable basis for calibration and precision phase adjustment.
