S-Parameters in Microwave Engineering

Scattering Parameters (S-Parameters)

Scattering Parameters (S-Parameters) are the global standard for characterizing high-frequency RF and microwave networks. Unlike low-frequency circuits that rely on total voltage and current, microwave network analysis uses traveling power waves to evaluate circuit performance.

What Are S-Parameters in Microwave Engineering?

S-parameters (also known as the scattering matrix or S-matrix) define how electromagnetic energy travels through a multi-port network, often modeled as a black box. A Vector Network Analyzer (VNA) measures these parameters by injecting a single-frequency stimulus into a specific port and detecting the amplitude and phase of the resulting waves exiting all connected ports.

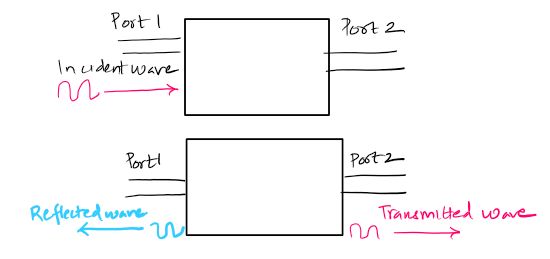

In high-frequency systems, power and voltage travel along transmission lines as forward- and backward-propagating waves. S-parameters express input/output network behavior as ratios of these normalized power waves.

• \(a_i\) : Incident power wave entering Port \(i\).
• \(b_i\) : Reflected or scattered power wave leaving Port \(i\).

The incident and reflected waves are normalized using the reference characteristic impedance \(Z_0\), typically \(50\,\Omega\).

\[ a_i=\frac{V_i^+}{\sqrt{Z_0}} \]

\[ b_i=\frac{V_i^-}{\sqrt{Z_0}} \]

where \(V_i^+\) and \(V_i^-\) are the forward and reverse traveling voltage waves respectively.

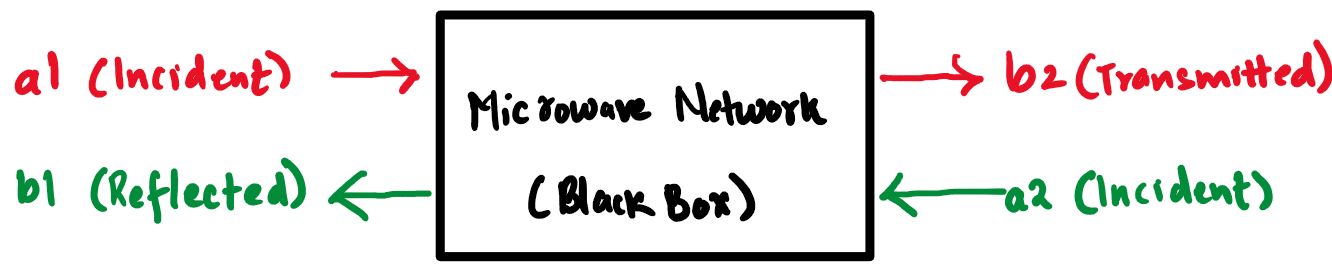

Two-Port S-Parameter Matrix

For a standard two-port microwave network, the relationship between incident and reflected power waves is represented by the scattering matrix equation:

\[ \begin{bmatrix} b_1\\ b_2 \end{bmatrix} = \begin{bmatrix} S_{11} & S_{12}\\ S_{21} & S_{22} \end{bmatrix} \begin{bmatrix} a_1\\ a_2 \end{bmatrix} \]

This matrix completely characterizes the linear microwave network under matched-load conditions.

General N-Port S-Matrix Representation

For an arbitrary microwave network containing \(N\) ports, the scattering matrix expands to:

\[ \begin{bmatrix} b_1\\ b_2\\ \vdots\\ b_N \end{bmatrix} = \begin{bmatrix} S_{11} & S_{12} & \cdots & S_{1N}\\ S_{21} & S_{22} & \cdots & S_{2N}\\ \vdots & \vdots & \ddots & \vdots\\ S_{N1} & S_{N2} & \cdots & S_{NN} \end{bmatrix} \begin{bmatrix} a_1\\ a_2\\ \vdots\\ a_N \end{bmatrix} \]

Each element \(S_{xy}\) describes the response measured at Port \(x\) due to excitation applied at Port \(y\).

The diagonal elements:

\[ S_{11}, S_{22}, \ldots , S_{NN} \]

represent reflection coefficients at individual ports.

The off-diagonal elements:

\[ S_{12}, S_{21}, S_{13}, S_{31}, \ldots \]

represent transmission characteristics between ports.

Unlike impedance or admittance parameters, S-parameters can be measured accurately using matched terminations without requiring ideal open-circuit or short-circuit conditions.

Physical Interpretation of S-Parameters

The subscripts in an S-parameter indicate the output port and input port respectively.

\[ S_{xy} \]

means the response measured at Port \(x\) due to an incident signal applied at Port \(y\).

For a two-port network, the four S-parameters are:

• \(S_{11}\) — Input Reflection Coefficient
• \(S_{21}\) — Forward Transmission Coefficient
• \(S_{12}\) — Reverse Transmission Coefficient
• \(S_{22}\) — Output Reflection Coefficient

Together, these parameters completely describe the RF behavior of a linear two-port microwave network.

1. Input Reflection Coefficient (\(S_{11}\))

Mathematical Definition

\[ S_{11} = \left. \frac{b_1}{a_1} \right|_{a_2=0} \]

This parameter represents the ratio of the reflected power wave leaving Port 1 to the incident power wave entering Port 1 when Port 2 is terminated with a matched load.

\[ a_2=0 \]

indicates that no wave is reflected back from Port 2.

Physical Meaning

\(S_{11}\) measures how well Port 1 is impedance matched to the system characteristic impedance.

If the input impedance perfectly matches the system impedance:

\[ Z_{in}=Z_0 \]

then:

\[ S_{11}=0 \]

meaning no power is reflected.

If all power is reflected:

\[ |S_{11}|=1 \]

which indicates complete mismatch.

Relationship to Reflection Coefficient

When Port 2 is matched:

\[ S_{11} = \Gamma_{in} \]

Therefore, \(S_{11}\) is equivalent to the input reflection coefficient.

Return Loss

Input matching is commonly expressed using Return Loss:

\[ \text{Return Loss} = -20\log_{10}|S_{11}| \]

A larger Return Loss value indicates a better impedance match.

Typical values are:

• \(10\,\text{dB}\) → acceptable matching
• \(20\,\text{dB}\) → good matching
• \(30\,\text{dB}\) → excellent matching

Practical Example

If:

\[ |S_{11}|=0.1 \]

then:

\[ \text{Return Loss} = -20\log_{10}(0.1) = 20\,\text{dB} \]

This means only a small portion of the signal is reflected.

2. Forward Transmission Coefficient (\(S_{21}\))

Mathematical Definition

\[ S_{21} = \left. \frac{b_2}{a_1} \right|_{a_2=0} \]

\(S_{21}\) represents the ratio of the transmitted wave leaving Port 2 to the incident wave entering Port 1.

Physical Meaning

\(S_{21}\) indicates how effectively power is transferred from the input to the output.

It is the most important parameter when evaluating:

• Amplifier gain
• Filter insertion loss
• Transmission line performance
• Cable attenuation
• RF system efficiency

Gain and Insertion Loss

\(S_{21}\) is normally expressed in decibels:

\[ S_{21}(\text{dB}) = 20\log_{10}|S_{21}| \]

For amplifiers:

\[ |S_{21}|>1 \]

which produces positive gain.

For passive devices:

\[ |S_{21}|<1 \]

which produces insertion loss.

Amplifier Example

If:

\[ |S_{21}|=10 \]

then:

\[ 20\log_{10}(10) = 20\,\text{dB} \]

The amplifier provides \(20\,\text{dB}\) forward gain.

Filter Example

If:

\[ |S_{21}|=0.5 \]

then:

\[ 20\log_{10}(0.5) = -6.02\,\text{dB} \]

This means the filter introduces approximately \(6\,\text{dB}\) insertion loss.

Relationship Between \(S_{11}\) and \(S_{21}\)

For a perfectly lossless two-port network:

\[ |S_{11}|^2 + |S_{21}|^2 = 1 \]

This equation shows that power can only be reflected or transmitted.

If reflection decreases:

\[ |S_{11}| \downarrow \]

then transmission increases:

\[ |S_{21}| \uparrow \]

which improves overall RF performance.

Because of this relationship, microwave engineers typically strive to minimize \(S_{11}\) while maximizing \(S_{21}\).

3. Reverse Transmission Coefficient / Isolation (\(S_{12}\))

Mathematical Definition

\[ S_{12} = \left. \frac{b_1}{a_2} \right|_{a_1=0} \]

This parameter represents the ratio of the power wave leaving Port 1 to the incident power wave entering Port 2 when Port 1 is terminated with a matched load.

\[ a_1=0 \]

ensures that no reflections are generated from Port 1 during the measurement.

Physical Meaning

\(S_{12}\) measures how much signal travels backward through a microwave network.

While \(S_{21}\) measures forward signal flow from Port 1 to Port 2, \(S_{12}\) measures reverse signal flow from Port 2 to Port 1.

This parameter is often called reverse transmission or reverse isolation.

Importance of Isolation

In many RF systems, signals should ideally flow in only one direction.

A small value of:

\[ |S_{12}| \]

indicates excellent isolation and minimal unwanted feedback.

High isolation is especially important in:

• RF amplifiers
• Oscillators
• Directional couplers
• Duplexers
• Radar systems
• Communication transmitters

Excessive reverse transmission can create:

• Instability
• Oscillation
• Signal distortion
• Reduced amplifier performance

Isolation in Decibels

The reverse transmission coefficient is usually expressed in decibels:

\[ S_{12}(\text{dB}) = 20\log_{10}|S_{12}| \]

The more negative the value, the better the isolation.

Typical values include:

• \(-10\,\text{dB}\) → poor isolation
• \(-20\,\text{dB}\) → moderate isolation
• \(-40\,\text{dB}\) → excellent isolation
• \(-60\,\text{dB}\) → extremely high isolation

Isolation Example

If:

\[ |S_{12}|=0.01 \]

then:

\[ 20\log_{10}(0.01) = -40\,\text{dB} \]

This means only a tiny fraction of the output signal leaks back toward the input.

4. Output Reflection Coefficient (\(S_{22}\))

Mathematical Definition

\[ S_{22} = \left. \frac{b_2}{a_2} \right|_{a_1=0} \]

\(S_{22}\) represents the ratio of the reflected power wave leaving Port 2 to the incident power wave entering Port 2 when Port 1 is matched.

Physical Meaning

\(S_{22}\) measures the impedance matching quality at the output port.

Just as \(S_{11}\) evaluates the input match, \(S_{22}\) evaluates the output match.

If the output impedance equals the system impedance:

\[ Z_{out}=Z_0 \]

then:

\[ S_{22}=0 \]

which indicates a perfect output match.

If the output is completely mismatched:

\[ |S_{22}|=1 \]

all power is reflected back into the network.

Output Return Loss

Output matching is usually specified using Return Loss:

\[ \text{Output Return Loss} = -20\log_{10}|S_{22}| \]

Higher return loss values indicate better matching and more efficient power transfer.

Example

If:

\[ |S_{22}|=0.05 \]

then:

\[ -20\log_{10}(0.05) = 26\,\text{dB} \]

This indicates a very well-matched output port.

Complete Two-Port S-Parameter Interpretation

The complete scattering matrix can be interpreted as:

\[ \begin{bmatrix} b_1\\ b_2 \end{bmatrix} = \begin{bmatrix} S_{11} & S_{12}\\ S_{21} & S_{22} \end{bmatrix} \begin{bmatrix} a_1\\ a_2 \end{bmatrix} \]

or equivalently:

\[ \begin{bmatrix} b_1\\ b_2 \end{bmatrix} = \begin{bmatrix} \text{Input Reflection} & \text{Reverse Transmission}\\ \text{Forward Transmission} & \text{Output Reflection} \end{bmatrix} \begin{bmatrix} a_1\\ a_2 \end{bmatrix} \]

Engineering Interpretation of the Four S-Parameters

Parameter	Physical Meaning	Desired Value
\(S_{11}\)	Input reflection coefficient	As small as possible
\(S_{21}\)	Forward transmission coefficient	As large as possible
\(S_{12}\)	Reverse transmission coefficient	As small as possible
\(S_{22}\)	Output reflection coefficient	As small as possible

For an ideal amplifier:

\[ S_{11}=0 \]

\[ S_{22}=0 \]

\[ |S_{21}| \gg 1 \]

\[ S_{12}=0 \]

This represents perfect matching, high gain, and complete reverse isolation.

For an ideal passive transmission line:

\[ S_{11}=0 \]

\[ S_{22}=0 \]

\[ |S_{21}|=1 \]

\[ S_{12}=1 \]

which corresponds to lossless transmission with no reflections.

4. Output Reflection Coefficient (S₂₂)

The final scattering parameter of a two-port microwave network is the output reflection coefficient, denoted by S₂₂. This parameter evaluates how effectively the output port is matched to the system characteristic impedance.

Mathematical Definition

\[ S_{22}= \left. \frac{b_2}{a_2} \right|_{a_1=0} \]

The condition \(a_1 = 0\) means Port 1 is terminated with a perfectly matched load so that no reflected energy returns toward Port 2 from the input side.

Detailed Interpretation of S₂₂

S₂₂ represents the ratio of the reflected power wave leaving Port 2 to the incident power wave entering Port 2.

Physically, it indicates how much energy is reflected back toward the output source due to impedance mismatch at the output terminal.

A well-designed microwave circuit attempts to minimize output reflections so that maximum RF power is delivered to the next stage in the signal chain.

Relationship to Output Reflection Coefficient

When Port 1 is terminated in the system impedance \(Z_0\), S₂₂ becomes identical to the output reflection coefficient:

\[ S_{22} = \Gamma_{out} \]

This makes S₂₂ an important metric when evaluating output matching networks for amplifiers, mixers, oscillators, and filters.

Output Return Loss

Output matching quality is commonly expressed as Return Loss:

\[ \text{Output Return Loss (dB)} = -20\log_{10}|S_{22}| \]

Smaller values of \(|S_{22}|\) produce larger return-loss values and therefore indicate superior matching.

• \(|S_{22}|=1\) → Complete reflection
• \(|S_{22}|=0.316\) → 10 dB Return Loss
• \(|S_{22}|=0.1\) → 20 dB Return Loss
• \(|S_{22}|=0\) → Perfect output match

Practical Applications of S₂₂

• RF amplifier output matching design
• Power amplifier load optimization
• Microwave filter output characterization
• Oscillator load stability analysis
• Antenna feed network matching

Summary Matrix of Two-Port S-Parameters

The complete two-port scattering matrix is:

\[ \begin{bmatrix} b_1\\ b_2 \end{bmatrix} = \begin{bmatrix} S_{11} & S_{12}\\ S_{21} & S_{22} \end{bmatrix} \begin{bmatrix} a_1\\ a_2 \end{bmatrix} \]

Each S-parameter has a unique physical meaning:

S-Parameter	Name	Physical Meaning	Typical Use
S11	Input Reflection Coefficient	Amount of signal reflected at Port 1	Input matching analysis
S21	Forward Transmission Coefficient	Signal transmitted from Port 1 to Port 2	Gain and insertion loss measurement
S12	Reverse Transmission Coefficient	Signal leakage from Port 2 to Port 1	Isolation analysis
S22	Output Reflection Coefficient	Amount of signal reflected at Port 2	Output matching analysis

Why S-Parameters Are Essential in Microwave Engineering

At microwave frequencies, traditional circuit parameters such as Z-parameters, Y-parameters, h-parameters, and ABCD parameters become difficult to measure accurately because they require ideal open-circuit or short-circuit conditions.

S-parameters eliminate these limitations by using matched loads and measurable traveling power waves. This approach prevents unwanted reflections, improves measurement accuracy, and allows safe characterization of active devices using a Vector Network Analyzer (VNA).

As a result, S-parameters have become the universal language of microwave engineering, RF circuit design, antenna analysis, amplifier characterization, filter design, and high-frequency communication systems.

In Short

• S₁₁ measures input matching and reflections at Port 1.
• S₂₁ measures forward transmission, gain, and insertion loss.
• S₁₂ measures reverse transmission and isolation.
• S₂₂ measures output matching and reflections at Port 2.
• S-parameters are measured using matched loads rather than impractical open- or short-circuit conditions.
• They provide the most accurate and practical method for characterizing RF and microwave networks.
