Transit-Time Effect in High-Frequency and Microwave Circuits

The transit-time effect is one of the fundamental high-frequency effects that must be understood before studying microwave generators. In an ordinary low-frequency circuit, the time required for an electrical signal to travel from one point to another is usually extremely small compared with the period of the applied signal. Because of this, the circuit can be analyzed by assuming that the voltage and current respond essentially simultaneously throughout the circuit. At high and microwave frequencies, however, the signal period becomes very short, while the physical length of the circuit remains unchanged. The propagation time can then become a significant fraction of the signal period, producing measurable phase differences between different points of the circuit.

The importance of the transit-time effect is therefore directly related to the relationship between the physical length of a structure, the propagation velocity of the signal, and the frequency of operation. When the propagation delay is negligible compared with the signal period, conventional lumped-element analysis remains appropriate. When the delay becomes comparable with the signal period, the physical dimensions of the circuit can no longer be ignored, and distributed or transmission-line analysis becomes necessary.

Definition of Transit Time

Transit time is the finite amount of time required for an electrical signal or electromagnetic disturbance to travel from one point to another through a physical transmission structure. Consider two points \(A\) and \(B\) separated by a conductor or transmission line of length \(L\). When a signal is applied at point \(A\), its effect does not appear at point \(B\) at exactly the same instant. The signal requires a finite time to propagate through the structure.

If the signal propagates with velocity \(v\), the transit time between the two points is given by

\[ t_r=\frac{L}{v} \]

where \(t_r\) is the transit time, \(L\) is the physical distance travelled by the signal, and \(v\) is the propagation velocity. This equation shows that transit time increases as the physical length of the structure increases and decreases as the propagation velocity increases.

Signal Propagation Between Two Points

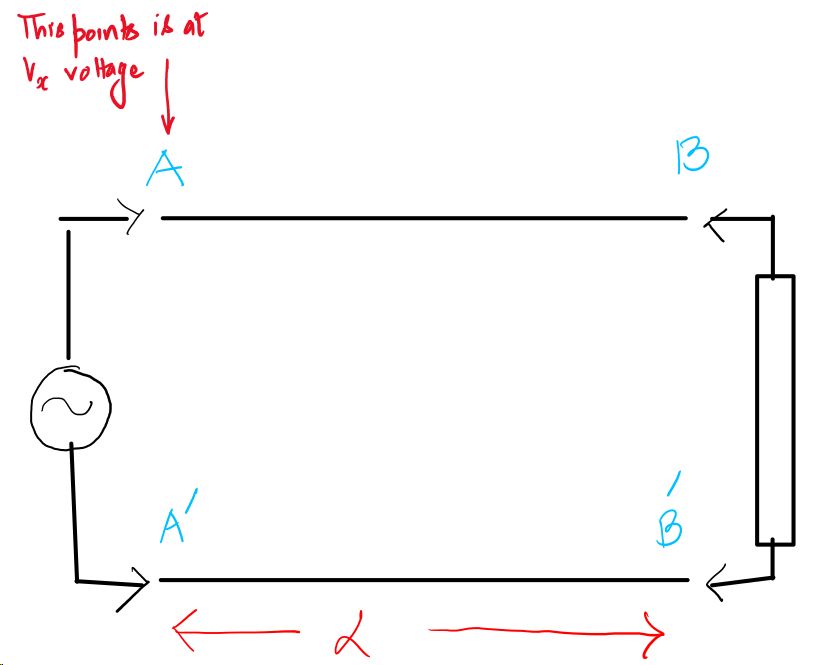

To understand the transit-time effect, consider a sinusoidal voltage applied to one end of a transmission line. Let the voltage at point \(A\) at a particular instant be \(V_x\). Since the signal propagates at a finite velocity, this voltage value requires a certain amount of time to reach point \(B\). During this propagation interval, the source voltage continues to vary according to its sinusoidal waveform.

At the instant \(t=0\), consider the signal voltage at point \(A\). The corresponding voltage disturbance begins propagating from \(A\) toward \(B\). At this instant, the signal has just started travelling along the transmission structure, so the voltage value observed at \(B\) corresponds to the earlier state of the signal before the disturbance has completed its propagation from \(A\) to \(B\).

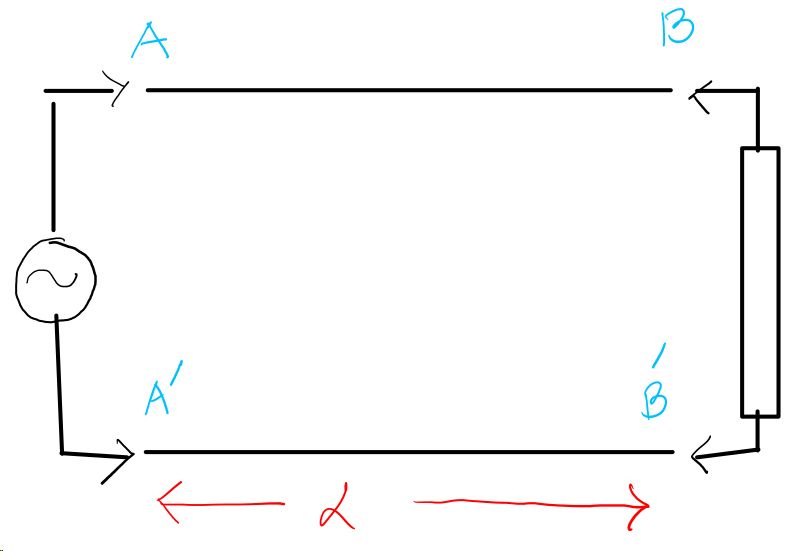

After a finite interval equal to the transit time \(t_r\), the signal corresponding to the condition at \(A\) at \(t=0\) reaches point \(B\). Thus, at \(t=t_r\), the voltage information that existed at point \(A\) at \(t=0\) is observed at point \(B\). During this interval, however, the source voltage at \(A\) has continued to change. Therefore, the instantaneous voltage at \(A\) at \(t=t_r\) is generally different from the voltage that was present at \(A\) at \(t=0\).

\[ t=0 \qquad \longrightarrow \qquad t=t_r \]

This provides a simple physical interpretation of transit time. The signal does not appear simultaneously at all points of the circuit. Instead, information about the signal propagates from one location to another, requiring a finite time. Therefore, the voltage observed at \(B\) at \(t=t_r\) corresponds to an earlier state of the voltage at \(A\).

Consequently, when the voltage corresponding to \(V_x\) reaches point \(B\), the voltage at point \(A\) is no longer necessarily \(V_x\). It has changed to another instantaneous value because the source signal has continued through its cycle. Therefore, the voltage at \(A\) and the voltage at \(B\) can be different at the same instant. This difference represents the effect of finite propagation time.

At low frequencies, the change in the source voltage during this propagation interval is usually extremely small. At high frequencies, the source voltage can change considerably during the same physical transit time because the signal period is much shorter. The same conductor can therefore behave as an almost ideal connection at one frequency and as an electrically significant transmission structure at another frequency.

Transit Time and Signal Period

The significance of transit time can be determined by comparing it with the period of the applied sinusoidal signal. The period \(T\) is the time required for one complete cycle of the signal and is related to frequency by

\[ T=\frac{1}{f} \]

where \(T\) is the signal period and \(f\) is the frequency. As frequency increases, the period decreases. The physical transit time of a particular transmission structure, however, remains approximately constant as long as its length and propagation conditions do not change significantly.

This means that increasing frequency causes the ratio \(t_r/T\) to increase. At a sufficiently low frequency, the transit time may be an extremely small fraction of the signal period. At a sufficiently high frequency, the same transit time can become a significant fraction of one cycle. This is the fundamental reason why transit-time effects become increasingly important as frequency increases.

Condition for Neglecting Transit Time

Transit-time effects can generally be neglected when the transit time is much smaller than the period of the applied signal. The condition can be expressed as

\[ t_r\ll T \]

Under this condition, the signal changes only slightly during the time required to travel from one point to another. Therefore, the voltage and current at different points of a physically small circuit can be treated as approximately simultaneous for the required level of circuit analysis.

Condition for Significant Transit Time

When the transit time becomes a significant fraction of the signal period, the voltage and current at different locations can have an appreciable phase difference. In the limiting sense, the effect becomes important when

\[ t_r\sim T \]

This does not represent a strict universal boundary. In practical engineering, the acceptable ratio between transit time and signal period depends on the required accuracy and the circuit application. Even a smaller phase difference may matter in a precision microwave system, while a less demanding application may tolerate a larger approximation error.

Transit-Time Effect at Low Frequency

At low frequency, the time period of the input voltage is relatively large. The signal therefore takes a very small fraction of one complete cycle to travel through a short conductor or transmission structure. In this condition, the transit time is negligible compared with the signal period.

The condition can be expressed as

\[ T\gg t_r \]

Hence, the transit-time effects can generally be neglected in conventional circuit analysis. The input voltage changes only slightly during the time required for the signal to travel from one point to another. As a result, different points of a physically small circuit can be treated as responding approximately simultaneously.

Therefore, to ignore the transit-time effect, the input-voltage time period should be sufficiently greater than the transit time. In practical terms, the required margin depends on the accuracy of the circuit analysis, but the fundamental condition is that the propagation delay must be much smaller than the signal period.

\[ t_r\ll T \]

For example, at \(1\) MHz, the period of the signal is \(1\) microsecond. A short transmission structure may have a propagation delay of only a few picoseconds or nanoseconds, making the delay an extremely small fraction of the signal period. In such a situation, the transit-time effect normally has little influence on ordinary circuit calculations.

Transit-Time Effect at High Frequency

At high frequency, the time period of the input voltage becomes very small. Although the physical transit time of a particular structure may remain approximately unchanged, the signal period decreases as frequency increases. Consequently, the transit time can become comparable with the signal period.

The condition can be represented as

\[ t_r\sim T \]

Under this condition, the transit-time effects cannot be neglected. The voltage at one point of the structure can have a noticeable phase difference from the voltage at another point because the signal requires a significant portion of a cycle to travel between the two locations. If the transit time is ignored, the resulting circuit analysis can become inaccurate.

The same physical structure that behaves approximately as an ideal connection at low frequency may therefore behave as a distributed transmission structure at high frequency. The physical length of the conductor, propagation velocity, wavelength, and signal frequency must all be considered when determining whether transit-time effects are significant.

When this occurs, the voltage at one point of the circuit can have a different phase from the voltage at another point. Current can also vary with position. The physical length of the structure must then be included in the circuit model, and transmission-line effects such as phase delay, reflection, standing waves, and characteristic impedance may become important.

This is one of the reasons microwave circuits cannot always be analyzed using only conventional KCL and KVL with ideal wires and lumped components. The circuit must instead be considered as a physical electromagnetic structure in which signals propagate through space.

Relationship Between Transit Time and Wavelength

Transit time and wavelength are closely related because both describe the propagation of a signal through a physical structure. The wavelength is given by

\[ \lambda=\frac{v}{f} \]

where \(v\) is the propagation velocity and \(f\) is the frequency. The transit time for a line of length \(L\) is

\[ t_r=\frac{L}{v} \]

Combining these relationships provides a useful way to understand electrical length. Since

\[ T=\frac{1}{f} \]

the ratio of transit time to signal period becomes

\[ \frac{t_r}{T} = \frac{L/v}{1/f} = \frac{Lf}{v} \]

Using \(\lambda=v/f\), this can also be written as

\[ \frac{t_r}{T}=\frac{L}{\lambda} \]

This relationship is particularly important. It shows that the ratio of transit time to signal period is directly related to the ratio of physical length to wavelength. When \(L\ll\lambda\), the structure is electrically short and transit-time effects are generally small. When \(L\) becomes a significant fraction of \(\lambda\), the transit-time effect becomes increasingly important.

Why Physical Dimensions Become Important at High Frequency

At low frequencies, the wavelength can be enormously larger than the dimensions of an ordinary electronic circuit. A few centimeters of conductor may represent an extremely small fraction of a wavelength. The circuit therefore behaves approximately as a lumped system, and its physical dimensions have little influence on the basic circuit relationships.

As frequency increases, wavelength decreases. The same physical structure can therefore occupy an increasingly larger fraction of the wavelength. Once this occurs, two points separated by a physical distance no longer experience exactly the same phase of the signal. The geometry of the circuit begins to influence its electrical behavior.

This leads to an important principle in microwave engineering: the electrical size of a structure is more important than its physical size alone. A structure that is physically small can still be electrically large at a sufficiently high frequency, while a physically large structure can remain electrically small if the wavelength is much larger.

Numerical Example of Transit-Time Effect

Consider a transmission-line structure having a length of \(1.5\) cm. For a simple illustration, assume a propagation velocity of approximately \(3\times10^8\) m/s. The transit time is

\[ t_r=\frac{0.015}{3\times10^8} \]

\[ t_r=5\times10^{-11}\text{ s}=50\text{ ps} \]

The physical transit time is therefore approximately \(50\) picoseconds under this propagation-velocity assumption. Now consider the same structure at two different frequencies.

Case 1: Frequency of 1 MHz

For an applied frequency of \(1\) MHz, the signal period is

\[ T=\frac{1}{10^6}=1\ \mu\text{s} \]

The ratio of transit time to signal period is

\[ \frac{t_r}{T} = \frac{50\times10^{-12}}{1\times10^{-6}} = 5\times10^{-5} \]

The transit time is therefore only a very small fraction of the signal period. The structure is electrically short at this frequency, and the transit-time effect can generally be neglected for ordinary circuit analysis.

The corresponding free-space wavelength, using the assumed propagation velocity, is

\[ \lambda=\frac{3\times10^8}{10^6}=300\text{ m} \]

The \(1.5\) cm structure is extremely small compared with this wavelength.

Case 2: Frequency of 10 GHz

For an applied frequency of \(10\) GHz, the signal period becomes

\[ T=\frac{1}{10^{10}}=100\text{ ps} \]

The same \(1.5\) cm structure still has a transit time of approximately \(50\) ps under the assumed propagation velocity. Therefore,

\[ \frac{t_r}{T} = \frac{50\text{ ps}}{100\text{ ps}} = 0.5 \]

The transit time is now one-half of the signal period. The signal can undergo a substantial phase change while travelling along the structure, so the physical length can no longer be ignored.

The corresponding free-space wavelength is

\[ \lambda=\frac{3\times10^8}{10^{10}} =0.03\text{ m} =3\text{ cm} \]

The \(1.5\) cm structure is therefore one-half of a free-space wavelength. This illustrates the transition from an electrically short structure at low frequency to an electrically significant structure at high frequency. In an actual guided microwave system, the wavelength should be calculated using the appropriate guided phase velocity rather than automatically using the free-space velocity.

Transit Time and Phase Difference

The transit-time effect can also be understood in terms of phase. A sinusoidal signal changes continuously with time, so a delay in time corresponds to a phase shift. For a sinusoidal signal with angular frequency \(\omega\), the phase shift produced by a propagation delay \(t_r\) is

\[ \phi=\omega t_r \]

Since \(\omega=2\pi f\), this can also be written as

\[ \phi=2\pi f t_r \]

Using \(t_r=L/v\), the phase shift along a structure of length \(L\) becomes

\[ \phi=\frac{2\pi fL}{v} \]

and because \(\lambda=v/f\), this becomes

\[ \phi=\frac{2\pi L}{\lambda} \]

This equation provides another direct connection between physical length and electrical behavior. A very small value of \(L/\lambda\) produces a small phase shift, whereas a structure occupying a significant fraction of a wavelength produces a significant phase shift.

Transit-Time Effect and Distributed Circuit Analysis

When transit-time effects are negligible, the circuit can generally be modeled using lumped components and ideal interconnections. The voltage and current at a circuit node can be represented by a single value at a given instant, and conventional circuit equations can be applied effectively.

When transit time becomes significant, the voltage and current must be considered as functions of position as well as time. The conductor can no longer be treated simply as an ideal wire. Instead, its distributed resistance, inductance, capacitance, and conductance must be considered. This leads to transmission-line analysis and, at still higher levels of complexity, full electromagnetic analysis.

The transition is gradual rather than occurring at one universal frequency. It depends on the ratio of physical dimensions to wavelength, the propagation medium, the geometry of the structure, and the accuracy required by the application. This is why a particular circuit may require distributed analysis at one frequency but can be treated successfully using lumped analysis at a much lower frequency.

Importance of Transit-Time Effect in Microwave Generators

The transit-time effect has special importance in microwave generators because many microwave devices operate through the controlled interaction of charged particles with electromagnetic fields. At microwave frequencies, the time taken by electrons to travel through different regions of a device can become comparable with the period of the microwave signal. Under these conditions, electron motion and electromagnetic fields cannot be treated as completely instantaneous or independent.

In devices such as klystrons and traveling-wave tubes, electron transit through specific regions of the device is deliberately related to the RF field so that velocity modulation, electron bunching, or energy exchange can occur. Thus, transit time is not merely an unwanted parasitic effect in every microwave device. In several microwave vacuum tubes, controlled electron transit time is an essential part of the mechanism used to generate or amplify microwave energy.

The study of transit time therefore provides an important bridge between conventional circuit theory and microwave-device operation. It explains why high-frequency circuits must account for physical dimensions and why specialized microwave generators use carefully designed interaction regions, resonant cavities, and transmission structures.

Key Points of Transit-Time Effect

• Transit time is the finite time required for a signal to travel through a physical structure.
• The transit time of a structure is given by \(\displaystyle t_r=L/v\).
• The period of a sinusoidal signal is given by \(\displaystyle T=1/f\).
• At \(t=0\), a signal disturbance begins propagating from one point of a transmission structure.
• At \(t=t_r\), the signal condition that existed at the starting point at \(t=0\) reaches the other point.
• Transit-time effects can generally be neglected when \(\displaystyle t_r\ll T\).
• At low frequency, the signal period is large compared with transit time, so the transit-time effect can generally be neglected.
• At high frequency, the signal period becomes small and the transit time can become comparable with the period.
• When the transit time becomes significant, ignoring it can lead to inaccurate circuit analysis.
• The ratio between transit time and signal period is related to electrical length through \(\displaystyle t_r/T=L/\lambda\).
• Increasing frequency reduces the signal period and wavelength, making a fixed physical structure electrically larger.
• A significant transit time produces phase differences between different points of a circuit.
• When transit-time effects become important, distributed and transmission-line analysis may be required.
• In several microwave vacuum devices, controlled electron transit time is an essential part of microwave generation or amplification.
